Copper Busbar Laser Marking: Design Traceability That Still Scans
A permanent mark is not the same as a traceable busbar. The symbol may survive on copper but point to no released database record. It may scan at the marking station and disappear under tin plating. It may be placed on a contact pad, inside a bend-deformation zone, or so close to a punched edge that the quiet zone is lost.

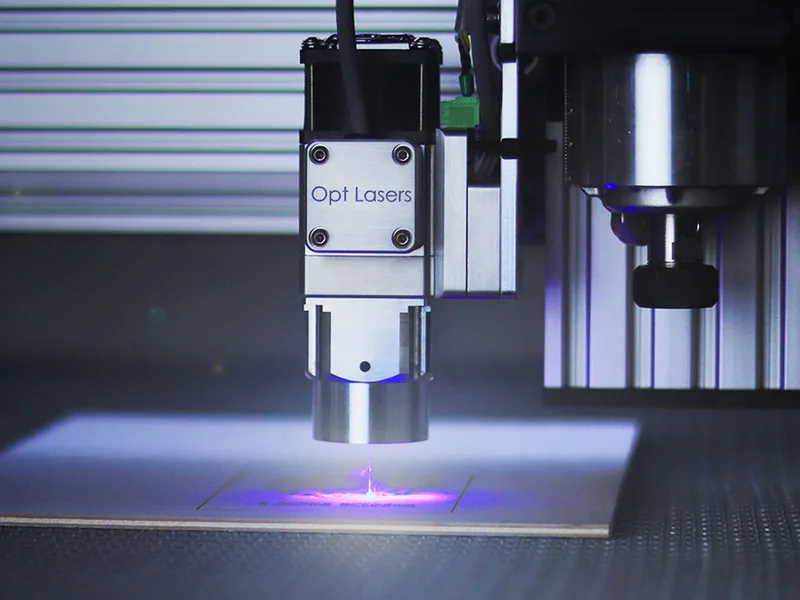

Start the project with the identity and transaction that the factory needs. Select the laser only after the data carrier, surface state, mark location, downstream processes and verification method are known.
Start With the Traceability Question, Not the Laser

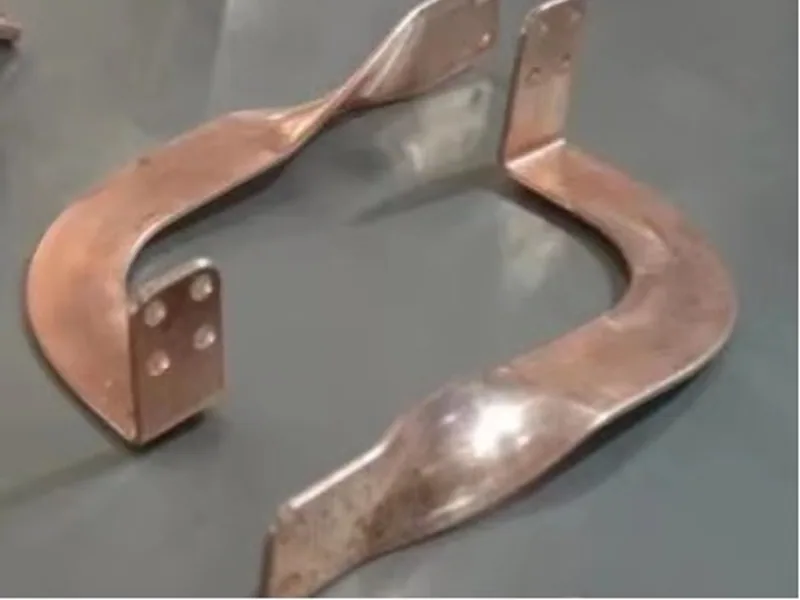

Decide the unit being identified. A raw bar, blank, finished busbar, matched set and assembly may each need a different identity. Define whether the code represents a part number, drawing revision, material lot, unique serial, production order or a database lookup key.
Separate identification from genealogy. The mark should contain enough information to remain useful and resolvable; the database can hold material heat, machine program, operator, tooling, coating batch and inspection records. Encoding every field directly makes the symbol larger or denser and creates a new problem when a record changes.
Provide human-readable text where space, customer rules and application permit it. A serial beside the 2D symbol helps quarantine a part when a scanner fails, but the text and code must derive from the same controlled data source.
If trading partners use GS1, follow the GS1 DataMatrix Guideline and the applicable GS1 General Specifications. Do not add GS1 identifiers merely because the symbol looks like a Data Matrix. A closed internal system may use another governed identifier syntax agreed by all users.
Choose a Mark Zone That Does Not Damage Function
Create a mark-zone layer on the engineering drawing. Exclude:
- bolted or welded contact faces;
- plating witness or coating-thickness measurement locations;
- bend lines and qualified deformation zones;
- edges, holes and narrow ligaments;
- creepage and clearance boundaries where a surface change matters;
- datum targets and inspection surfaces;
- regions covered by insulation, hardware or assembly fixtures;
- areas exposed to severe rubbing or inaccessible after installation.
A mark changes the surface. Depending on process, it may create an oxide/color change, melt or ablate a shallow layer, alter roughness or generate debris. Specify permitted depth, heat effect, contrast, position and cosmetic boundary based on functional risk. For thin laminated conductors or plated contact systems, even a shallow process needs qualification.
Coordinate the mark with the busbar drawing and datum plan. The drawing should locate the allowed zone, while the marking program can choose a position inside it without colliding with features or later tooling.

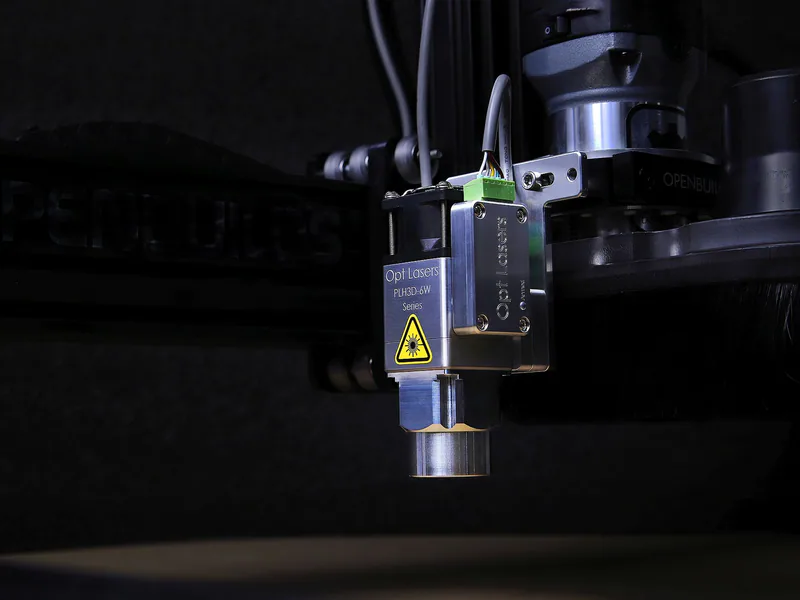

Qualify Contrast on the Actual Surface State
Copper’s optical behavior makes parameter selection material- and surface-dependent. TRUMPF describes industrial laser marking of copper and the challenge presented by reflective material. The production qualification must use the actual alloy, finish, thickness and surface history.
Test at least the expected extremes:
| Surface state | Qualification question |
|---|---|
| mill-finish bare copper | can the process create stable contrast without unacceptable depth or heat effect? |
| oxidized or handled copper | does normal surface variation change grade or require controlled cleaning? |
| tin, silver or nickel finish | is marking before plating obscured, or does marking after plating damage the finish? |
| protective film | must it be removed locally, and can residue affect the mark? |
| insulated part | will the mark remain visible, or should identity move to a defined exposed area/label? |
Marking before forming can simplify fixturing, but a nearby bend can distort the symbol. Marking before cleaning or plating may remove or cover contrast. Marking after finishing preserves visibility but can breach or discolor the finish. There is no universal best point; test the complete route.
Keep the Data Carrier Small but Governed
For a 2D symbol, define symbology, data syntax, identifier authority, character set, module size, quiet zone, physical size and orientation. Lock the relationship between the encoded identifier and human-readable text. Validate every variable field before the laser fires.
Use versioned data rules. If the plant later adds a supplier or line code, older scanners and database parsers must still interpret earlier marks. Avoid meaningful identifiers assembled manually at the station; the system should generate or reserve them from a controlled source.
The GS1 guide points implementers to ISO/IEC 16022 for the Data Matrix symbology. It also distinguishes symbol creation from print/mark quality. Following a data syntax does not prove that a physical code on copper is readable.
Verify the Mark, Do Not Merely Read It Once
A production scanner answers “could I decode this symbol under this setup?” Verification evaluates symbol quality against a defined method. ISO/IEC 29158:2025 is the current standard for direct-part-mark symbol quality testing and modifies the ISO/IEC 15415 methodology for DPM conditions.
Define the verifier, illumination, calibration, aperture and grading setup required by the application specification. Establish a minimum grade and sampling plan. Retain grade components and image where useful, not only a green light. A low grade can reveal declining contrast or cell geometry before decoding failures reach the customer.
Challenge the symbol with the intended scanners, distances, angles and ambient light at downstream stations. A verifier and a production reader have different roles; a robust line needs both method compliance and practical readability.

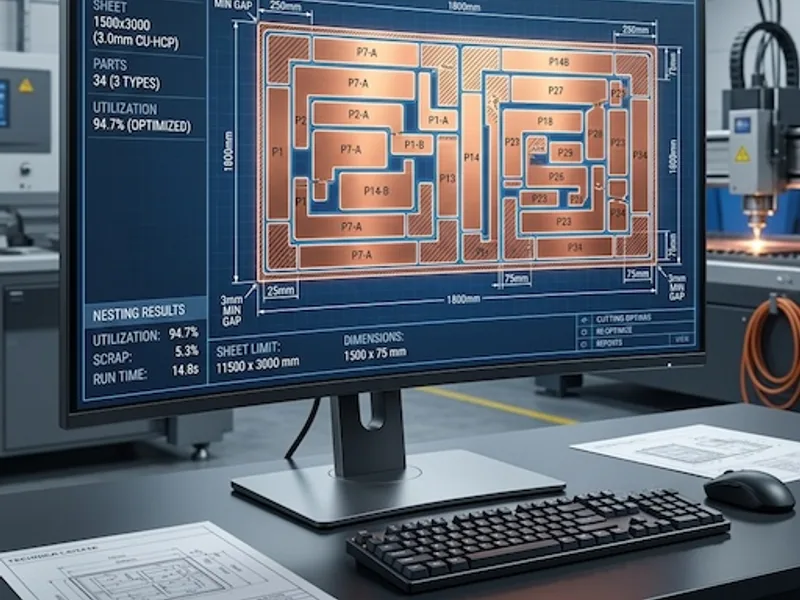

Connect Marking to MES Without Creating Orphans
The marking station needs a transaction model:
- receive the released part and revision;
- request or reserve a unique identifier;
- verify that the identifier is unused and belongs to the work order;
- mark the part;
- read and grade the result;
- commit the mark, program, time, station and quality result;
- route failed marks to a controlled rework or scrap state.
Do not mark a serial and create its record later. A network or printer fault can leave a physical part with no database identity. Likewise, never reuse a serial from a scrapped part unless the governing standard explicitly allows it and the system retains the full event history.
The CNC–MES data-contract guide defines the broader job, material, program, tooling and quality objects. Laser marking is the physical binding step. It should publish a verified result back to that contract, not act as a separate island.
Run a Qualification That Includes the Whole Route
Use production-representative parts and mark settings. Scan and grade immediately, then process them through punching, deburring, bending, washing, plating or insulation, handling, packing and the planned storage interval. Repeat reading and grading at the stages that can change the mark.
Include abrasion and contamination challenges justified by the application. Check that the mark does not create cracks in a formed zone, interfere with coating-thickness sampling, or weaken the protected finish. The XRF plating-thickness guide can help separate the mark zone from the coating measurement map.
At final audit, scan with the device and software the customer or assembly station will use. Verify that the returned record has the correct part, revision and material genealogy. The factory traceability protocol should include duplicate prevention, mark rework, database backup and sample retrieval.
The best mark is not the darkest engraving. It is a controlled identifier, placed outside electrical and mechanical functions, that remains readable after every process and resolves to the correct released record.
Frequently Asked Questions (FAQs)
Should a copper busbar use a QR Code or Data Matrix?
Choose the carrier required by the customer, industry data standard, available mark area, scanner environment and data content. Data Matrix is widely used for compact industrial direct-part marking, but it must be encoded and verified under the agreed application specification.
Can a busbar be laser marked on its electrical contact face?
A functional contact face is normally a poor mark location because marking can alter topography, oxide, coating or cleanliness. Put the mark in an approved noncontact zone unless engineering qualification explicitly demonstrates no adverse effect.
Is one successful scan enough to accept a laser-marked busbar?
No. A code can read once under favorable lighting and fail after bending, washing, plating, insulation, abrasion or installation. Qualification should grade the DPM with the agreed method and challenge it across the full process and intended scanners.
How much data should be encoded on a busbar?
Usually the code should carry a governed identifier or small set of essential fields, while detailed genealogy remains in the controlled database. Excess data increases symbol size or density and can reduce robustness without improving traceability.
