Busbar Machine Factory & Capabilities
A specialized CNC busbar machine manufacturing facility in Jinan, Shandong. Pre-calibrated monoblock cast-iron workstations engineered for switchgear, transformer, and power grid manufacturers worldwide. 15+ years of technical heritage driving every assembly line.
Years Industry Heritage
Founder's specialized CNC busbar engineering heritage since 2010
Shipping & Deliveries
Direct factory-to-plant seaworthy sea cargo packaging
Machines Shipped
Pre-calibrated CNC workstations shipped worldwide
On-Time Dispatch
Reliable ocean freight bookings under ISO 9001 controls
Rigid Monoblock Innovation Backed by Decades of R&D
DH CNC operates a specialized, digitally-focused manufacturing facility in Jinan, Shandong, dedicated exclusively to next-generation monoblock cast-iron busbar processing machinery. Unlike older factories with worn welding tables, our manufacturing center runs high-speed milling and gantry grinding centers on a purpose-built assembly floor, ensuring absolute machine alignment and baseline structural rigidity from the first bolt to final calibration.
Our core technical foundation rests on 15+ years of specialized industry experience led by our founder and Chief Application Architect, Mr. David Yang. Since 2010, Yang has engineered hydraulic cylinders, PLC nesting software, and high-durability punching dies for global switchgear manufacturers. Every DH CNC busbar machine — from the DHCNC-BP-60 punching center to the DHAC-BB-H servo bender — reflects this accumulated precision engineering knowledge.
By shifting from a legacy sales agent setup to direct factory application sales, DH CNC guarantees every B2B workstation is configured directly to your plant's target specifications—preventing transport-induced calibration drift and avoiding costly third-party agency markups.

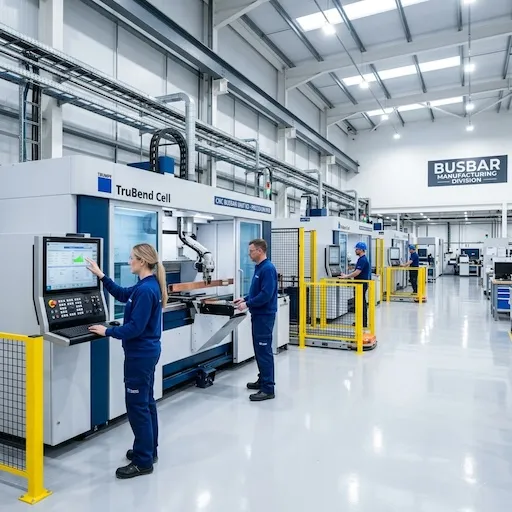

* Real workstation floor view used for factory capability review.
How Every DH CNC Workstation Is Built
Four engineering competencies that define every busbar processing machine we ship — from raw casting to containerized delivery:
Monoblock Frame Fabrication
Heavy ductile iron castings are milled on a single gantry bed to lock in absolute geometric stability. Unlike split-body designs that drift during ocean transit, the monoblock architecture ensures punching, shearing, and bending axes remain perfectly aligned from factory floor to your production line.
Hydraulic System Integration
Three independent 31.5 MPa high-pressure pump stations — each paired with a dedicated Siemens electric motor and Yuken proportional valve block — deliver full rated force simultaneously to all workstations. No pressure drop, no speed loss, no cross-station interference.
Pre-Calibration & Load Validation
Every assembled workstation undergoes 72 hours of uninterrupted full-load stress cycling at 31.5 MPa before crating. Hydraulic seals, servo feedback loops, and turret indexing are validated against baseline calibration logs. Machines ship pre-filled, pre-wired, and production-ready.
Containerized Global Logistics
Workstations are vacuum-sealed inside moisture-proof barrier bags with desiccant blocks, then secured in steel-reinforced fumigation-free wooden export crates rated for 20-foot ocean containers. We manage FOB, CIF, and DAP terms to major ports worldwide.
Calibrating Your Workstation to Your Exact Plant Specifications
Standard switchgear manufacturers face severe bottlenecks because machinery agents supply "one-size-fits-all" hardware. At DH CNC, we bypass brokers to align our engineering team directly with your switchboard factory layout:
- Custom Die & Tooling Calibration: We review your STEP/DXF drawing packets to verify clearance limits and produce specialized punching, shearing, and multi-angle bending dies optimized for copper and aluminum.
- Plant Grid Winding & Compliance: Before dispatch, all motor coils, AC contactors, and hydraulic valve systems are wound and load-tested matching your regional grid standard, whether it's 220V/440V 60Hz three-phase lines or US 480V 60Hz.
- 3D Nesting Optimization: We guide your drafting team to set up nesting offsets inside our proprietary touchscreen PLC system, cutting copper scrap waste to below 3% (delivering an average 12.5% reduction in yearly metal procurement costs).
ISO 9001 Quality Control & Transit Testing
How our Jinan facility eliminates assembly errors, pressure leaks, and transit-induced misalignment.
ISO 9001 Quality Control
Every component is logged. Finished machines undergo rigorous continuous active-load hydraulic simulations for 48 hours before packing.
Grid Frequency Calibration
Factory-level winding of heavy motors to 60Hz and isolation transformer packaging ensures perfect compatibility with regional grids.
Fumigation-Free Packaging
All shipments are packed in heavy steel-reinforced, export-grade, fumigation-free wooden crates for protection during transit.
Direct WhatsApp Diagnostics
Chief application engineers are reachable 24/7. Built-in remote diagnostic modems resolve 80%+ of issues instantly.
Rigid Pre-Shipment Inspection Protocol
Heavy Industrial Switchboard Applications
Calibrated workstations powering the switchboard assembly lines of international distribution networks.
Low & High Voltage Switchgear
Calibrating multi-station punching, shearing, and bending for copper switchboards, control cabinets, and distribution panels.
Power Distribution Transformers
Precision bending and custom die forming for high-conductivity T2 red copper busbars inside heavy transformer grids.
Marine & Industrial Control Panels
Tooling configurations engineered for space-efficient marine switchboards, solar grid inverters, and battery terminal layouts.
Mr. David Yang
"Our manufacturing philosophy is simple: every DH CNC workstation must ship as a single, perfectly aligned monoblock that arrives at your factory gates ready for immediate production. By applying my 15+ years of specialized R&D experience in hydraulic flow design, closed-loop servo calibration, and die tooling geometry directly to heavy cast-iron frames, we've eliminated the transit alignment drift that plagues conventional split-body machines. When you connect three-phase power, the machine performs exactly as it did on our Jinan test bench."
WANT A VIRTUAL TOUR OF THE FACTORY?
Connect directly with David Yang to receive a high-resolution workshop tour, verify active CNC assembly work, or inspect raw T2 copper test pieces.
Ready to Upgrade Your Sourcing?
Bypass standard trading companies. Speak directly with our chief application engineers to configure precise machine voltages, die tooling tolerances, and secure direct volume quotes.
