3-in-1 Compact Workstation

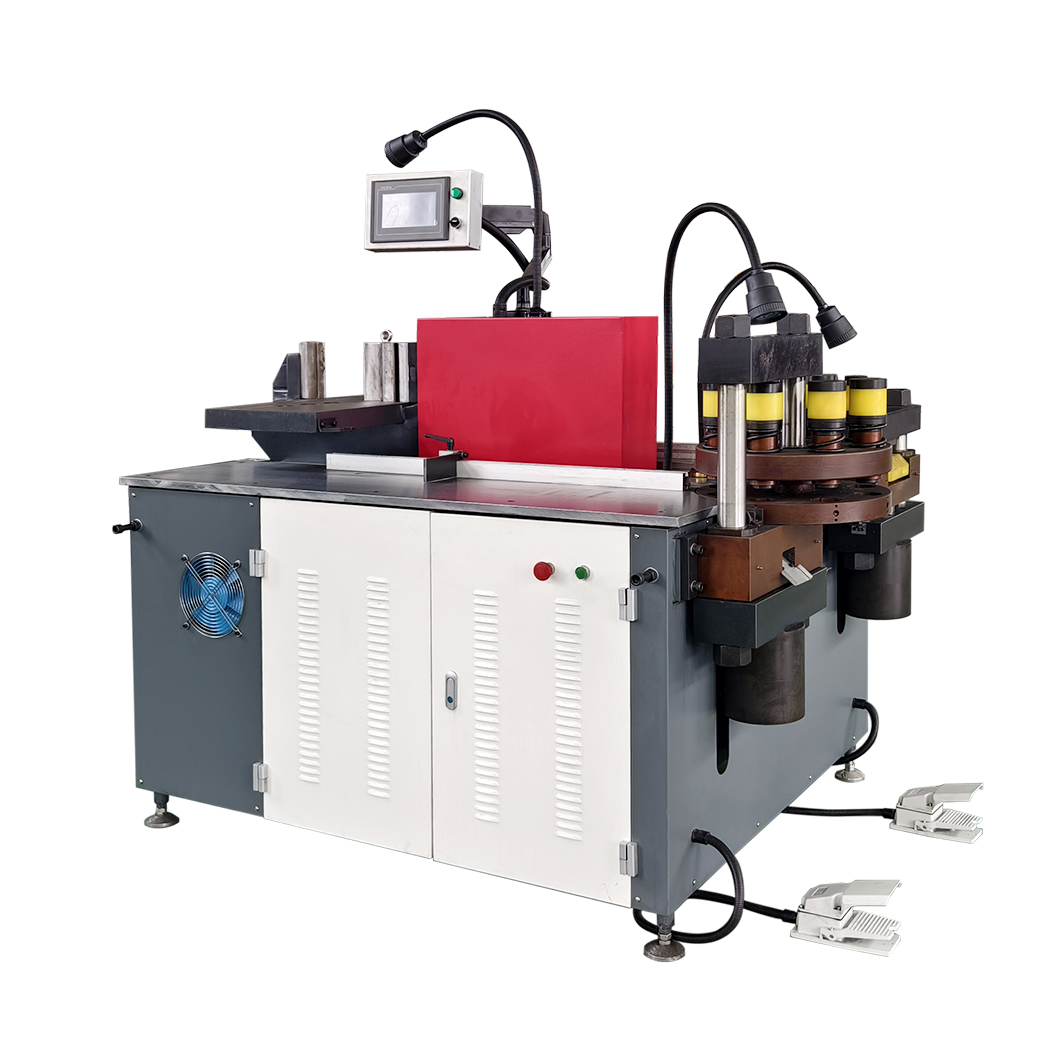

DH303-8P 3-in-1 Busbar Processing Machine

Name: 3-in-1 Busbar Processing Machine
Brand: DH CNC
SKU: DH303-8P

3-in-1 Workstation | Punch · Shear · Bend · All in One

A compact 3-in-1 busbar machine that places punching, shearing and bending on one workstation. Three independent hydraulic circuits support parallel operation; confirm the required bar size, dies, electrical supply and acceptance parts in the order specification.

Certification

ISO 9001

Process Stations

Punch · Shear · Bend

Hydraulic Pumps

3 × 31.5 MPa

Get Custom Tooling Evaluation Talk to Application Engineer

WORKSTATION: DH303-8P PRODUCTION BROADCAST

Request Feasibility Audit

* In-stock DH303-8P 3-in-1 busbar workstation factory demonstration.

DH303-8P Sourcing Summary

The DH303-8P combines punching, shearing and bending in one compact three-station workstation. Its three independent hydraulic circuits (3×31.5 MPa), 8-station turret, open bending area and touchscreen blank-length workflow support mixed switchgear production with parallel operator access. Regional electrical configurations include 50 Hz and 60 Hz project options.

HARDCORE TECHNICAL SPECS & OPERATION

What Technical Specifications Define the DH303-8P 3-in-1 CNC Busbar Processing Machine?

Cross-reference our rigid engineering boundaries on the right while discovering core mechanical advantages on the left.

ZERO WORKPIECE TRANSFER FLOW

INTERACTIVE 3-IN-1 WORKFLOW DEMONSTRATION

Discover how the DH303-8P delivers rapid batch processing across three completely independent stations, avoiding time-wasting tool setups.

1. PUNCHING STAGE: 8-STATION TURRET

The multi-station turret structure avoids frequent die changes. Featuring 7 punching and 1 embossing die sets configured simultaneously in a thick ductile iron index head, reducing setup delays to zero.

2. SHEARING STAGE: ZERO-WASTE SINGLE-CUT

Dual column guide shearing frame delivers vertical downward force. Zero-waste single-cut mechanism completely eliminates copper off-cut scrap slivers, ensuring perfectly straight, burr-free edges.

3. BENDING STAGE: DUAL HMI STROKE CALIBRATION

Ductile iron open-frame bending unit provides a full 360° visibility. Siemens PLC registers linear travel values, calculating springback angles automatically to maintain high ±0.5° verticality tolerances.

📊 1-VS-3 COST COMPARISON

1 UNIFIED DH303-8P VS 3 STANDALONE UNITS

Sourcing a compact multi-function center vs equipping separate hydraulic lines:

THREE SINGLE UNITS

• High Footprint: Needs 12 sqm floor
• Multi-Pump: High electrical load
• Setup Costs: Three separate shipments
• Cumulative Sourcing Overhead

ONE DH303-8P WORKSTATION

• Compact Footprint: Only 2.4 sqm
• Single 3-Pump Unit (low load)
• 1 Shipping Crate (Fully Pre-Calibrated)
• Highly Competitive Sourcing Rate

Standard Included Tooling Package

Flat Bending Die Set

Radius R4 & R8 punches (1 set)

Vertical Bending Die Set

Precision alignment blocks (1 pair)

Round Hole Punching Dies

Φ9, Φ11, Φ13, Φ15, Φ17 (1 pair each)

Oblong Hole Punching Dies

11×15 & 13×17 (1 pair each)

Embossing Die Package

Industrial quality (1 pair)

Zero-Waste Shearing Die

Column guide single-cut (1 pair)

Equipment Customization Guide

Our direct-factory procurement plan for the DH303-8P ensures high-value return. The final FOB, CIF, or DAP custom invoice is tailored based on:

Motor Windings: Custom three-phase grid matching pre-calibrated to your regional standard (e.g. 220V/60Hz, 380V/60Hz, 440V/60Hz).
Custom Tooling Dies: Custom shapes, slots, or unique copper embossing engraving stamps.
Logistics Protocols: Turnkey wooden box packing and CIF/DAP customs clearance directly to your regional seaport.

DH303-8P Specifications

Verification standard: ISO 9001:2015

Punching Force 350 kN

Shearing Force 350 kN

Bending Force 350 kN

Hydraulic Pumps 3 × 31.5 MPa (3 Independent Pumps)

Turret Die Stations 8 Sets (7 Punch + 1 Emboss)

Bending Accuracy ±0.5°

Max Bending Capacity Flat 15 × 160 mm | Vert 12 × 120 mm

Max Punching Thickness / Dia 15 mm / Φ32 mm

Max Shearing Width / Thickness 160 mm / 15 mm

Worktable Dimensions L1 1,750 × 1,250 mm

Worktable Dimensions L2 840 × 370 mm

Bending Stroke Travel 240 mm

Number of Motors 4 Motors (3 Standard + 1 Oil Pump)

Total Installed Power 11.37 kW

System Operating Voltage 380 V (Customizable)

Machine Weight / Dimensions 2,200 kg / 1,750 × 1,350 × 1,500 mm

Claim DH303-8P Sourcing Plan

How Does DH CNC Solve Common 3-in-1 Busbar Processing Production Bottlenecks?

How DH CNC drives multi-operator performance and eases blanking calculations on the shop Floor.

PAIN POINT: System Pressure Drop During Simultaneous Multi-Operator Use

Standard entry-level 3-in-1 machines share a single or dual hydraulic pump. When three operators attempt to punch, shear, and bend at the same time, fluid pressure collapses, stalling the machine and risking pump burnout.

DH CNC SOLUTION

3 Independent Pumps & Motors. The DH303-8P is designed with a robust triple-hydraulic circuit (3×31.5 MPa) powered by 4 independent motors. Three operators can work simultaneously at full capacity with zero pressure interference.

PAIN POINT: Dependence on Highly Skilled Operators for Blanking Calculations

Calculating the flat blanking length of copper bars before bending requires complex trigonometry to offset thickness deformation. Manual math errors lead to discarded copper and slower run times.

DH CNC SOLUTION

Smart Touchscreen HMI. The integrated Siemens HMI features automated blanking calculations. Operators simply enter drawing specifications (lengths L1-L4 and target angles), and the system automatically calculates the flat layout, punch positions, and bending strokes.

PAIN POINT: Poor Workpiece Visibility & High Swap Times on Closed Benders

Standard closed-type bending units (with top bars and screws) block the operator's view of the bend point. Aligning markings is difficult, and swapping dies takes 15-20 minutes, reducing custom batch throughput.

DH CNC SOLUTION

Ductile Iron Open-Type Bending. Our bending unit features an open cast ductile iron frame. It provides full 360° visibility for easy alignment and allows tooling swaps for flat, vertical, or U-bends in under 2 minutes.

Which Industrial-Grade Components Power the DH303-8P?

Industrial-grade elements sourced strictly from globally verified Siemens, Inovance, and high-pressure hydraulic supply chains.

Control System Components

Central PLC Siemens (Industrial-Grade)

HMI Control Panel Industrial Smart Touchscreen

AC Contactors Industrial-Grade

Circuit Breakers Industrial-Grade

Relay System Industrial-Grade

Cable Encoder High-Resolution Custom

Hydraulic & Motor Components

Hydraulic Pumps Imported High-Pressure (3 Units)

AC Motors 3 Standard + 1 Oil Pump Motor

High-Pressure Hose Steel-Braid Reinforced

Cylinder Seals Imported Wear-Resistant

How Does the DH303-8P Compare Against Traditional Multi-Function Machines in Total Cost of Ownership?

Compare the DH303-8P against standard entry-level benders. Make an informed procurement decision.

On a narrow screen, scroll the table horizontally. Keyboard users can focus the table region and use the arrow keys.

How Does the DH303-8P Compare Against Traditional Multi-Function Machines in Total Cost of Ownership?
Performance Metric	DH303-8P Solution	Traditional Bending Machines
Hydraulic System Drive	3 Independent Pumps (3 × 31.5 MPa)	1 or 2 Shared Pumps (pressure drops)
Simultaneous Operations	3 Operators at full capacity	1 operator or multi-lag delays
Bending Frame Structure	Ductile Iron Open-Cast	Welded Steel Closed-Type (poor visibility)
Turret Punch Stations	8-Station Turret	6-Station manual index
Shearing Mode Quality	Single-Shear (Zero waste, burr-free)	Double-cut (produces scrap slivers)
Blanking Length Calculations	Automated HMI Smart Calculation	Manual trigonometry estimation
Operational Noise	Idle ≤40 dB / Load ≤70 dB	Idle ≥55 dB / Load ≥85 dB

What Is the Operator Learning Curve, ROI, and Global Application Scope of DH303-8P?

An engineering-focused evaluation of the DH303-8P 3-in-1 busbar processor's operational workflow, tooling economics, and regional voltage configurations.

Simultaneous Workstations & HMI Simplicity

Standard 3-in-1 multi-stations often share a single hydraulic circuit, causing pressure drops and forcing operators to wait. The DH303-8P workstation features three independent hydraulic pump and motor units (3×31.5 MPa). Bending, punching, and cutting stations operate simultaneously and at full speed, eliminating assembly line bottlenecks.

The built-in HMI touchscreen simplifies setup. Operators input copper busbar thickness and desired bend angles, and the system automatically calculates coordinates and stroke positions. Setup time and manual calculations are reduced to near zero, shortening the operator learning curve to under 4 hours.

45% Capital Savings & Space Optimization

Purchasing individual standalone bending, punching, and shearing machines increases equipment acquisition costs, footprint, and maintenance overhead. The DH303-8P delivers three dedicated, industrial-grade stations on a single compact footprint, saving up to 45% in capital expenditure and freeing up floor space.

The unified, heavy-duty cast monoblock frame prevents alignment drift during transport. This ensures perfect calibration out of the box and saves $3,000–$5,000 in third-party technician calibration fees upon delivery.

Switchgear Enclosures & Grid Compatibility

Perfect for low-voltage switchboard assembly, high/low voltage switchgear enclosures, custom control panels, and transformer winding workshops. It cuts and punches copper busbar stock up to 12mm thick with absolute repeatability.

Every system is custom-configured at our factory to match your local power infrastructure, pre-wiring motors and starters for 220V/440V 60Hz (Mexico & LATAM), 480V 60Hz (USA & Canada), and 380V/400V 50Hz (Europe, Asia, Middle East). Shipped in seaworthy vacuum rust-barrier bags inside reinforced non-fumigation wood crates. For technical details on frequency matching, read our Technical Case Study: Power Grid Voltage Modifications for Latin American Industrial Deployments. For an engineering comparison of the DH303-8P's triple-pump closed-loop hydraulics vs. conventional systems, see our Servo-Hydraulic vs. Conventional Hydraulic Drive Systems Guide.

FACILITY PRODUCTION & WORKSTATION VERIFICATION

DH303-8P Visual Quality Audit

Explore actual HMI touchscreen pages, industrial workstation modules, and finished machined copper parts directly from our production floor.

FEATURE 01

Touch CNC HMI & Bending Calculations Audit

Visual documentation of the pre-loaded 3-in-1 coordinates, blanking calculations, real-time cylinder pressure, and automated calibration diagnostics screen.

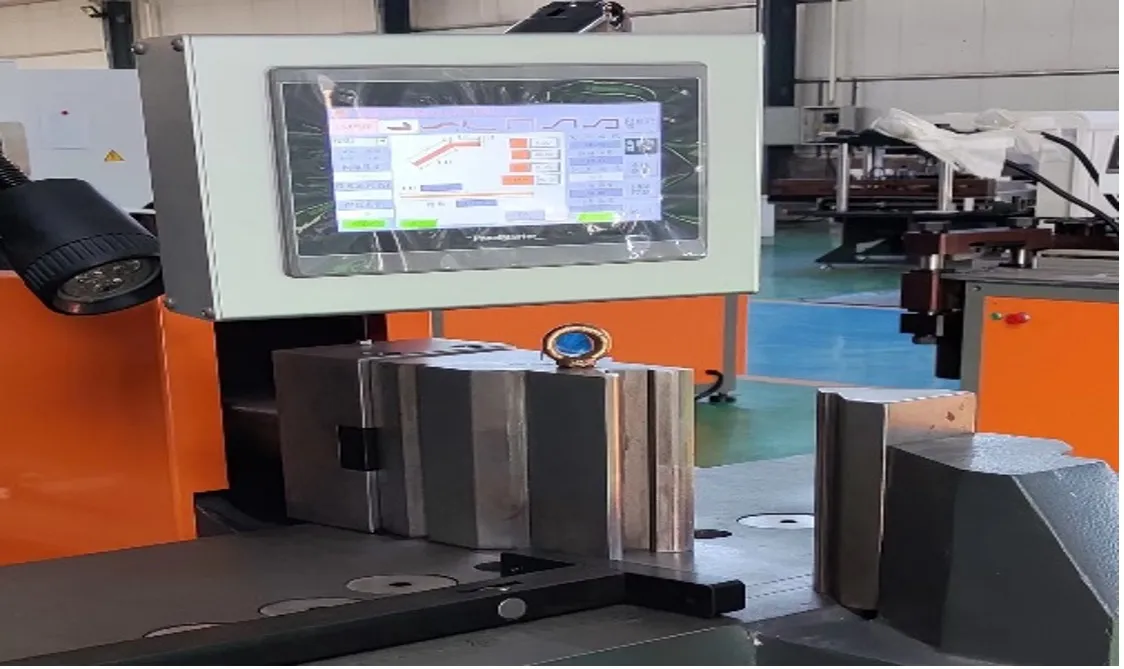

Smart UI Dashboard

Siemens-powered home interface detailing active stations, oil temperature indicators, and stroke cycle counters.

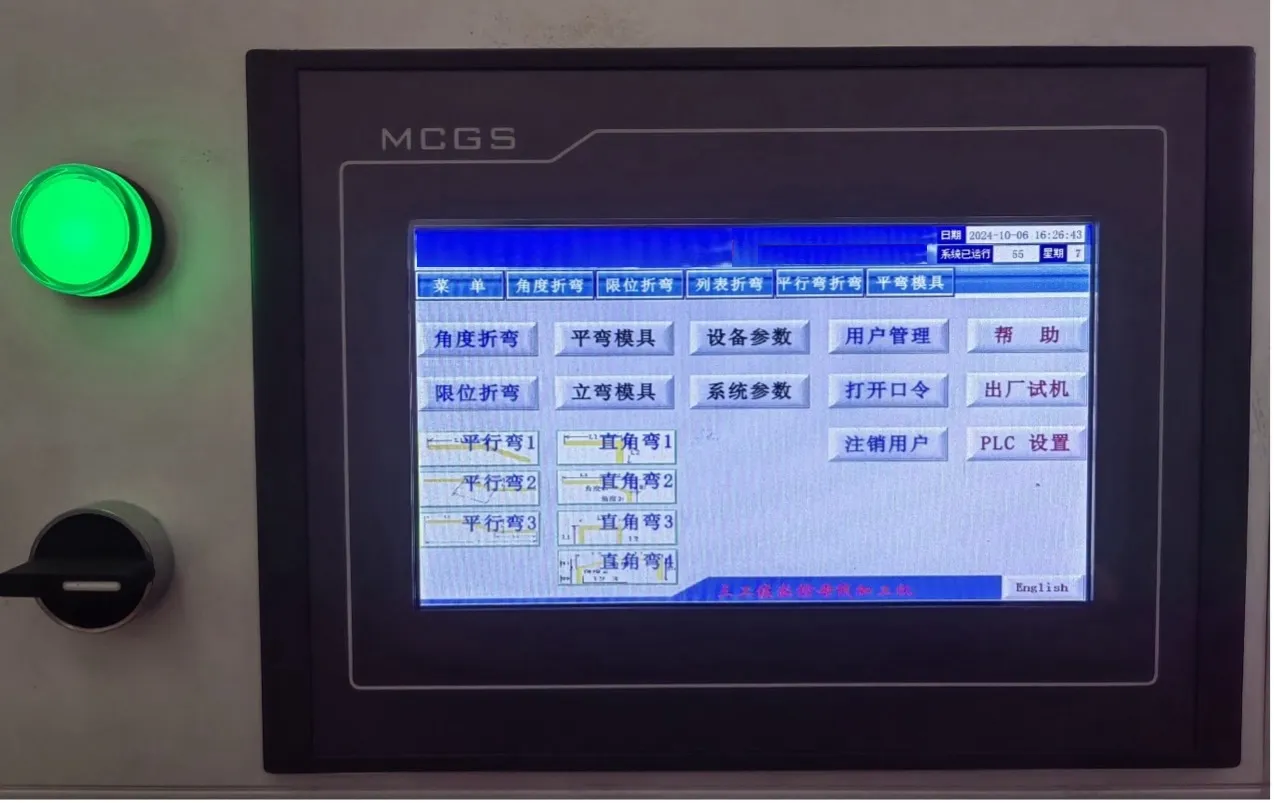

Automatic Blanking Calculator

HMI interface for multi-angle input setup. Automatically calculates the raw blanking length of copper bars.

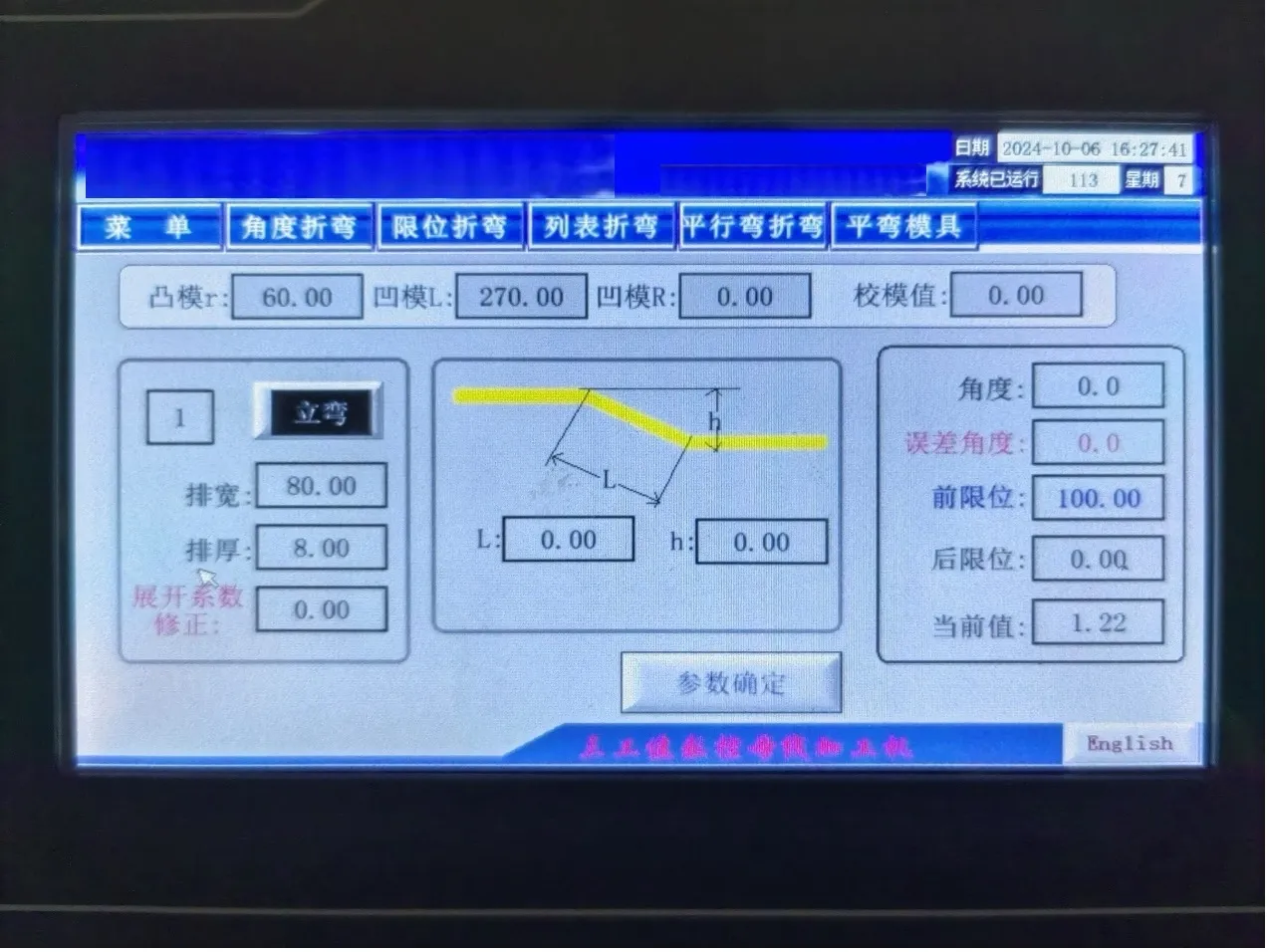

HMI Diagnostics and Pressure Tracing Logs

Pressure Diagnostics & Logs

Hydraulic pressure tracing logs and troubleshooting diagnostics panel ensuring high-precision closed-loop control.

FEATURE 02

CNC Station Tooling & Monoblock Hydraulic Cylinders

Detailed workshop photography showing our robust indexing turret punch block, zero-waste vertical shear guide, and open-cast bending cylinder layout.

8-Station Turret Indexing Punching Unit View

8-Station Turret Punch

Heavy cast steel indexing turret head holds 8 standard molds. Swapping dies is done in under 10 seconds.

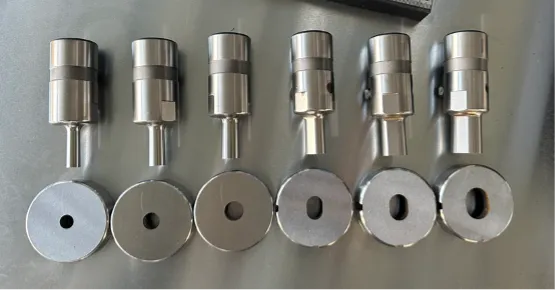

Precision circular and oblong turret punch dies blueprints

Turret Punch Die Sets

CAD vectors detail our quick-change circular, oblong, and special rectangular punching molds.

Zero-Waste Shearing Unit

Ductile column guide shear block delivers vertical flat cuts with zero waste off-cut slivers.

Open-Type Cast Ductile Iron Bending Frame Unit

Ductile Iron Open Bending

Cast open-type bender allows rapid tooling swap and yields excellent bending radius visibility.

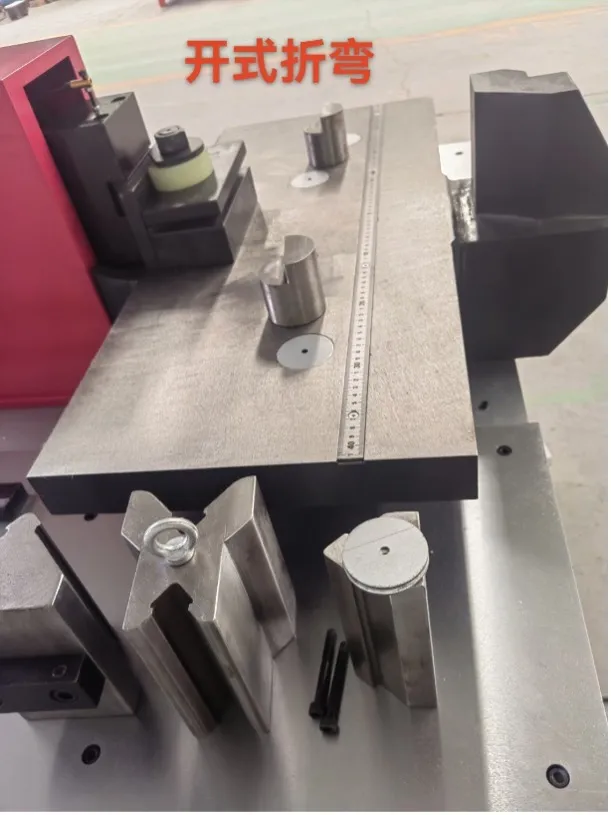

Open Bending Setup

Horizontal flat bending die swap operation. Custom limit switches ensure excellent repeat positioning angles.

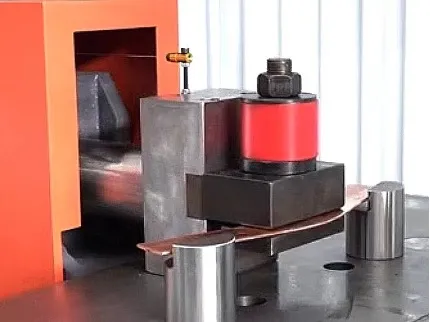

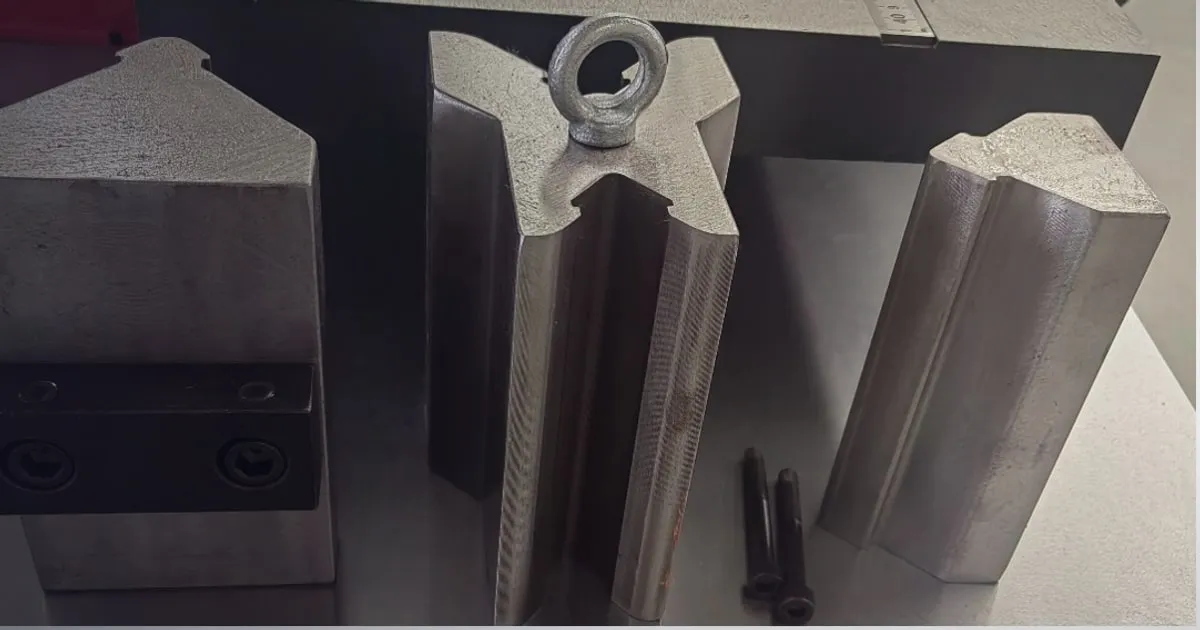

Vertical Bending Swap

Quick mounting of upright vertical bending die block. Delivers exact-angle structural profiles on narrow bars.

FEATURE 03

Machined Copper Samples & Finished Pieces

Inspect the smooth edge profiles, clean bend geometry, and pitch accuracy on actual copper components manufactured by the DH303-8P.

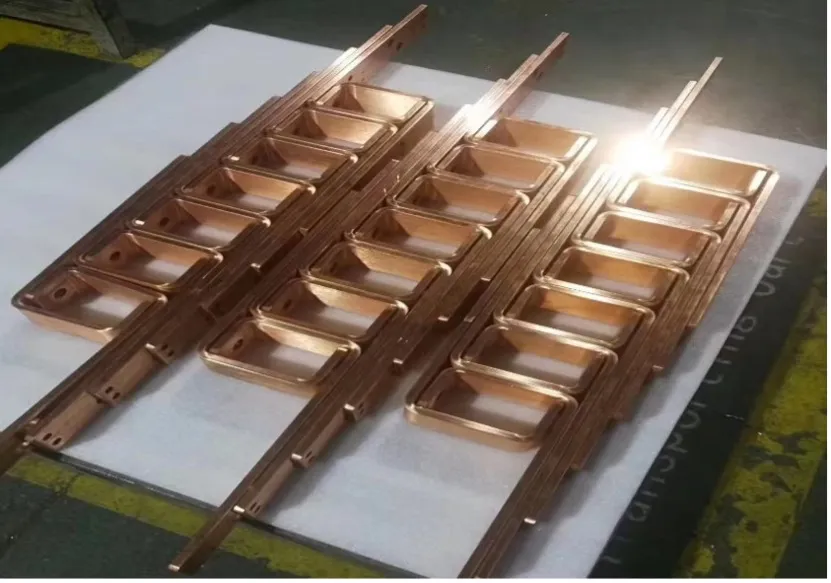

Finished flat bending copper busbar sample

Flat Bending Sample

90° flat bend on T2 copper busbar showing clean forming without cracking or surface thinning.

Vertical Bending Profile

Edge upright vertical bend showing consistent profile height and smooth mechanical deformation lines.

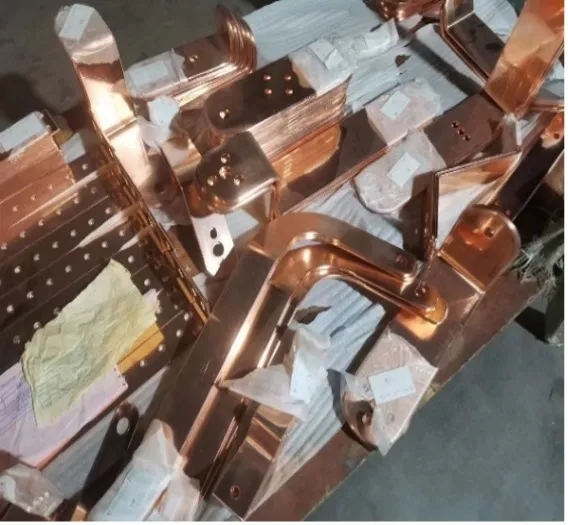

Compact U-bending copper connection bridge sample

U-Bending Bridge Stack

Compact U-bend bridge connector stack showing pristine surface finish and accurate mechanical spacing.

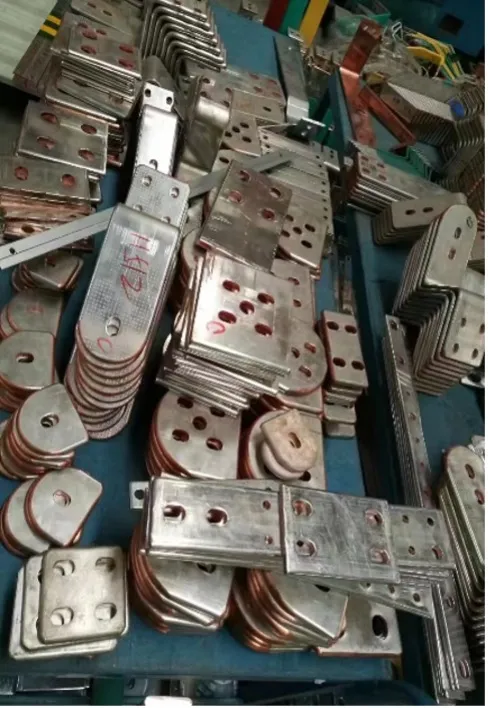

Machined punching hole array copper bar sample

Burr-free Punching Array

High density hole array showing smooth cut surfaces and absolute pitch alignment accuracy.
