C110 vs C101 and C102 Copper: Specifying Busbar Material

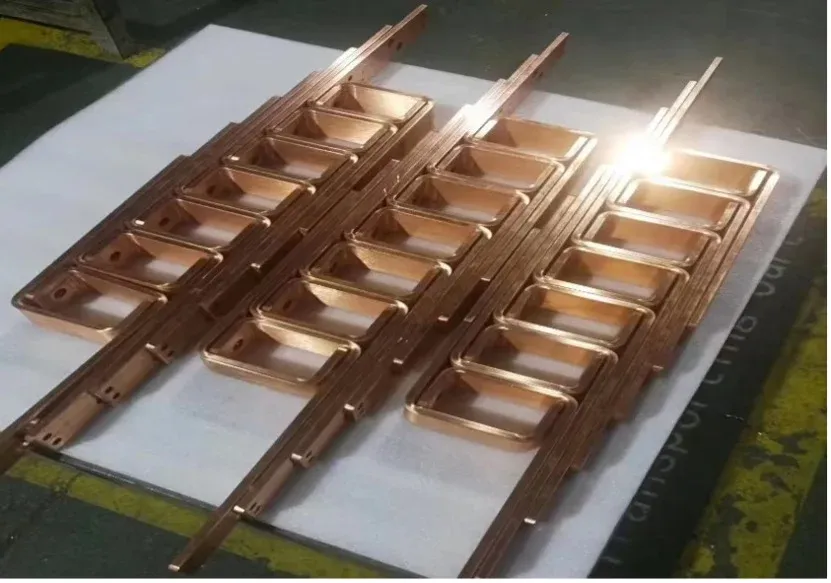

Two shipments marked “C110 copper” can produce different bend results without either shipment having the wrong alloy name. One may be supplied in a different temper, or with a different thickness tolerance. If the purchase order specifies only the grade, the workshop is left to discover those differences during production.

For busbars, the useful comparison is not simply whether C101 is purer than C110. It is whether the material supports the required current path, forming sequence, joining process, and acceptance evidence. Oxygen-free copper can solve a specific processing problem, but it does not remove the need to control geometry and joints.

This guide concerns high-conductivity copper grades. A decision to change conductor metal altogether belongs in the separate copper-versus-aluminum machining comparison.

The Grade Name Is Only One Line of the Specification

A usable material definition has several parts: alloy designation, governing product standard, temper, dimensions and tolerances, required electrical properties, surface condition, and traceability. Each answers a different question.

The alloy identifies composition. Temper describes a condition associated with processing and mechanical properties. The product standard establishes the applicable requirements for the supplied form. None of these, on its own, confirms that a particular offset bend will fit the assembly.

Consider an order for a thick bar with two closely spaced bends. Changing to a softer condition may make forming easier but change springback and handling stiffness. Substituting a harder condition may improve resistance to handling damage while requiring a different forming setup. Those consequences need a trial against the actual drawing, not a general preference for “hard” or “soft” copper.

Keep the material definition attached to the busbar fabrication process plan, so stock approval and machine programming use the same assumptions.

What C110, C102, and C101 Actually Distinguish

The Copper Development Association identifies C11000 as electrolytic tough-pitch copper, C10200 as oxygen-free copper, and C10100 as oxygen-free electronic copper. The abbreviated names C110, C102, and C101 are common in commercial discussions, but the full designation is preferable on controlled documentation.

Designation	Practical distinction	Question to resolve before ordering
C11000, ETP	High-conductivity tough-pitch copper containing oxygen	Is the specified joining route compatible with this material?
C10200, OF	Oxygen-free grade	Does the application need oxygen-free material, and which supplied condition?
C10100, OFE	Electronic grade with tighter impurity controls	Does the drawing or process require these additional controls?

The CDA entries describe minimum annealed conductivity of 100% IACS for C11000 and C10200, and 101% IACS for C10100. Do not confuse those stated conditions with every value in a supplier’s typical-property table or with a guarantee for any finished part.

“OFHC” is also encountered in supply discussions. Resolve the requested designation and standard rather than treating every oxygen-free commercial label as interchangeable. A certificate that names the actual alloy is more useful than a quotation that only says “premium copper.”

Let the Joining Route Decide Whether Oxygen Matters

Oxygen becomes especially relevant when copper is exposed to a hydrogen-bearing reducing atmosphere at elevated temperature. The 2014 edition of Copper for Busbars explains the reaction involving cuprous oxide that can produce internal damage. It also makes an important distinction: avoiding the unsuitable atmosphere can permit sound joining of tough-pitch material.

That is a process-selection issue, not a rule that every welded busbar must use the most expensive grade available. Define the joining method, atmosphere, thermal exposure, joint geometry, and required examination. Then qualify the material and process together.

A mechanically fastened switchboard bar and a conductor subjected to a specialized thermal joining cycle do not necessarily justify the same specification. Likewise, selecting C101 does not automatically establish a sound laser weld, acceptable porosity, or adequate fatigue performance. Joint access, surface preparation, coating, energy input, and process control remain relevant.

Where the busbar is plated or insulated after joining, include those downstream operations in the qualification route. A successful bare-metal coupon is not sufficient evidence for a different coated production assembly.

Temper and Bend Validation Can Matter More Than Another Purity Digit

Use the actual material form and temper when proving the bend sequence. Record thickness, inside radius, rolling orientation where relevant, tooling identity, bend direction, and the final geometry after unloading. Check the outside of the bend for cracking and inspect nearby holes for distortion.

Receiving inspection can independently support the certificate with a qualified conductivity method. The copper busbar conductivity testing guide distinguishes ASTM E1004 eddy-current screening from ASTM B193 resistivity measurement and explains why neither result alone proves alloy, temper or joint quality.

The trial should include the most demanding feature, not just a generous single bend. An offset near a terminal, an edgewise bend, or a short return flange can expose limitations that a simple demonstration does not.

For a workstation such as the DHAC-BB-H busbar bender, material approval and process settings belong together. The machine’s published capacity is not a substitute for testing the selected grade, condition, and geometry. A bend program proven with one supplied condition should not be transferred to a substitute without checking the effect.

Avoid using a purity upgrade to conceal an unresolved forming problem. If the root cause is a small radius, tool mismatch, or an incorrect developed length, a different alloy designation may leave the failure unchanged.

Build a Material Approval Packet

A practical release packet can be short, provided it connects the purchase requirement to the physical stock:

• A controlled material line stating designation, product standard, temper, and dimensional requirements.
• A supplier certificate tied to the delivered batch or heat, with the properties required by the order.
• Receiving checks for identification, thickness, width, surface condition, and obvious damage.
• A representative forming or joining qualification where the process requires it.
• Written approval for deviations or substitutions, including the affected part numbers.

For example, “copper bar, C11000, temper and product standard per drawing revision D, certified conductivity requirement, no substitution without approval” is more useful than “high-purity copper.” It is still incomplete until the drawing supplies the omitted values; the wording is a procurement structure, not a ready-to-use universal specification.

Keep remnant identification intact after cutting. A correctly certified incoming bar becomes difficult to defend if several grades or conditions are later mixed in an unmarked rack. The finished-part inspection checklist should therefore reference the same material identity used at receiving.

Choose a Grade Without Buying Unnecessary Complexity

Start with the approved electrical and mechanical requirements. If the joining route presents an oxygen-related risk, evaluate the appropriate oxygen-free grade with the joining specialist. If tighter impurity controls are required by the customer or application, specify them explicitly. Otherwise, compare qualified supply options on the evidence needed for the actual part.

The strongest material choice is the one that remains unambiguous from quotation to finished busbar: the right grade, in the right condition, processed through a proven route, with records that can be traced back to the stock. A higher purity number alone does not provide that assurance.
