Why are switchgear manufacturers switching from copper to aluminum busbars?

In 2026, severe copper price volatility is driving B2B manufacturers to explore aluminum alternatives. While aluminum requires a larger cross-section to achieve the same ampacity as copper, it is significantly lighter and cheaper, making it highly attractive for large-scale power distribution networks where weight and budget are critical constraints.

Do I need different CNC machine tooling for aluminum versus copper busbars?

Yes. Aluminum is softer and has higher ductility but different springback characteristics compared to T2 copper. CNC busbar machines must utilize specific punch die clearances to prevent aluminum galling and require adjusted servo-bending parameters to compensate for aluminum's unique elastic recovery rate.

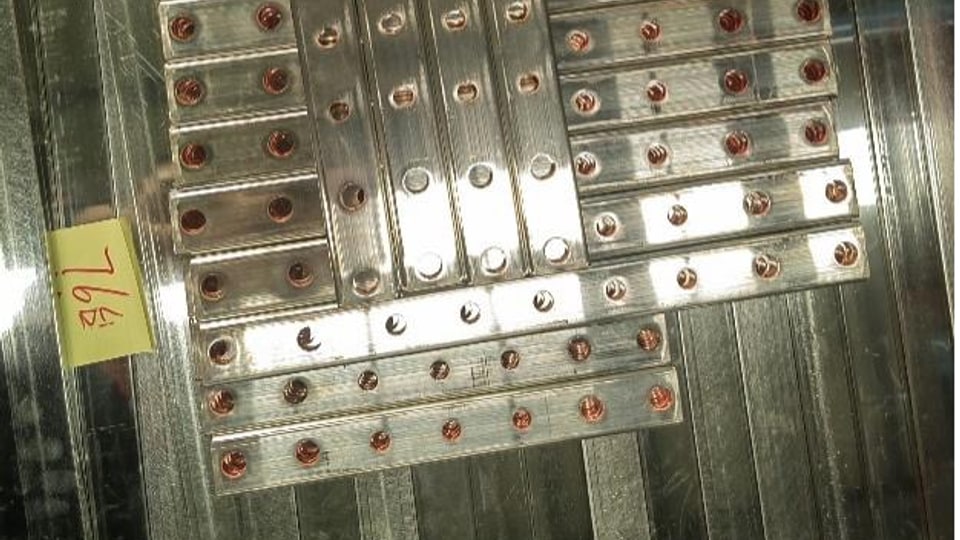

Copper vs Aluminum Bus Bars: How Do CNC Machining Requirements Differ?

The volatile commodities market in 2026 has forced switchgear procurement engineers to aggressively re-evaluate their raw material strategies. While T2 electrolytic copper remains the undisputed gold standard for conductivity, the severe price delta has made aluminum an increasingly viable, cost-saving alternative for specific low-voltage applications. However, transitioning from copper to aluminum is not a simple 1:1 swap—it requires a profound understanding of how these metals behave under immense mechanical stress during CNC fabrication.

What Are the Fundamental Machining Differences Between Copper and Aluminum?

When evaluating copper vs aluminum bus bar fabrication, the primary difference lies in the material’s yield strength and ductility, which directly dictates how cnc busbar processing parameters must be calibrated. Because an aluminum vs copper bus bar exhibits significantly lower tensile strength, it requires less hydraulic tonnage to bend; however, aluminum possesses a higher elastic springback rate, meaning it will unbend slightly more than copper after the die is released. To achieve the exact same 90-degree angle, copper vs aluminum bus bars require completely different over-bending compensation logic within the CNC software. Furthermore, aluminum’s softer molecular structure makes it prone to “galling” (sticking) during hole punching, mandating the use of specialized tooling clearances and lubrication strategies to prevent rapid die degradation and edge burrs.

How Do Tooling Clearances Affect Punching Quality?

A frequent mistake made by switchgear assemblers transitioning materials is attempting to use the exact same punch and die sets for both metals. In precision stamping, the clearance—the microscopic gap between the punch and the lower die—must be perfectly matched to the material’s shear strength and thickness.

Fabrication Parameter	T2 Half-Hard Copper Busbars	6101-T6 Aluminum Busbars	CNC Machining Strategy
Die Clearance (Punching)	~5% to 8% of material thickness.	~8% to 10% of material thickness.	Using a copper die for aluminum will cause excessive rollover and jagged fractures on the bottom edge.
Springback Behavior	Moderate. Predictable elastic recovery.	High. Strong tendency to return to original flat state.	Requires advanced closed-loop servo-bending to actively measure and compensate for the extra recoil.
Tooling Wear / Galling	Normal abrasive wear over thousands of cycles.	High risk of aluminum sticking to the punch head.	Mandates polished tooling surfaces and automated micro-lubrication systems in the punching station.

[!WARNING] If you plan to process both metals interchangeably, you must invest in a machine that supports rapid tooling changeovers. Failing to swap die clearances when shifting from copper to aluminum will severely damage your tooling and produce rejected parts that fail dielectric inspections. Read our in-depth analysis on conductivity and machining differences to learn more.

How to Optimize CNC Bending for Aluminum’s Elasticity?

Bending aluminum busbars without causing micro-cracking on the outer radius requires specific attention to the bend radius. Because aluminum must be thicker than copper to carry the same electrical current (approximately 1.6 times the cross-sectional area), you are inherently bending a thicker block of metal.

Standard cnc busbar processing guidelines dictate that the minimum inside bend radius for aluminum should be at least equal to its thickness (1T), whereas copper can often be bent at a tighter radius. If you apply a sharp copper bending tool to a thick aluminum bar, the tension on the outer curve will exceed its tensile limits, causing invisible micro-fractures that dramatically increase electrical resistance and heat generation in the field. Therefore, programming the correct tooling V-width and radius into your CNC controller is non-negotiable.

Industry Consensus on Material Transition

The shift toward aluminum in specific applications is backed by global metallurgical research. The Copper Development Association (CDA) consistently highlights copper’s unmatched volumetric efficiency for compact switchgear. However, the Aluminum Association provides extensive documentation proving that 6101-T6 aluminum alloys, when properly machined and surface-treated (e.g., tin-plated), offer exceptional long-term reliability for high-ampacity busducts. Furthermore, research from the International Aluminum Institute and structural engineering reports from Gartner indicate that modern CNC machining has bridged the historical reliability gap, provided manufacturers strictly adhere to metal-specific fabrication protocols.

For facilities handling mixed-metal production schedules, adopting a highly versatile platform like the DH303-8P 3-in-1 Combo machine ensures you have the necessary independent hydraulic control and software libraries to pivot between copper vs aluminum bus bar runs without compromising factory throughput.
