How much current does a 100 kW rack draw at 415 V three-phase?

At unity power factor, 100 kW at 415 V three-phase is about 139 A using P divided by square root of three times voltage. Actual design current must include power factor, efficiency, redundancy, continuous-load rules, harmonics, future load and the selected distribution topology.

Does a 100 kW rack always require a 400 A tap-off?

No. A 400 A device may provide useful headroom in some 415 V designs, but the required rating depends on whether it serves one rack or several, the usable continuous rating, redundancy, conductor temperature, plug configuration and local code.

Is 1500 VDC busway already the standard data-center architecture?

No. ASHRAE describes current designs as focused on 800 VDC and future designs scaling toward the 1500 VDC low-voltage limit. OCP is developing LVDC architecture and guidance, so a 1500 VDC request should be treated as a project-specific roadmap requirement unless a qualified product and code path are identified.

Which standards apply to data-center busway?

IEC 61439-6 covers low-voltage busbar trunking systems internationally, while UL 857 is a principal North American busway product standard. Facility, installation, fire, seismic and local electrical-code requirements must also be identified for the actual site.

Data Center Busway Procurement: 100 kW Racks and 1500 VDC

AI rack density is pushing data-center power distribution toward higher-current busway and new direct-current architectures. Procurement teams should resist two shortcuts: assuming every 100 kW rack needs the same 400 A tap-off, and treating 1500 VDC as a widely available catalogue system.

Start with the facility one-line, redundancy concept and load calculation. Then select a product whose rating, test evidence, tap-off arrangement, protection and installation rules fit that architecture.

Calculate rack current before choosing ampacity

For a balanced three-phase AC load:

Current = real power ÷ (√3 × line voltage × power factor × efficiency)

At 100 kW, 415 V, unity power factor and 100% efficiency, current is approximately:

100,000 ÷ (1.732 × 415) = 139 A

Real design current is higher when power factor and efficiency are below one. The selected tap-off must also account for continuous loading rules, ambient and enclosure temperature, harmonic content, protective-device coordination, connector rating, redundancy and future capacity.

A 400 A tap-off is therefore not derived directly from “100 kW.” At 415 V three-phase and unity power factor, 400 A corresponds to about 288 kW before derating and other constraints. It may serve one rack with substantial headroom or a group of racks, depending on the topology.

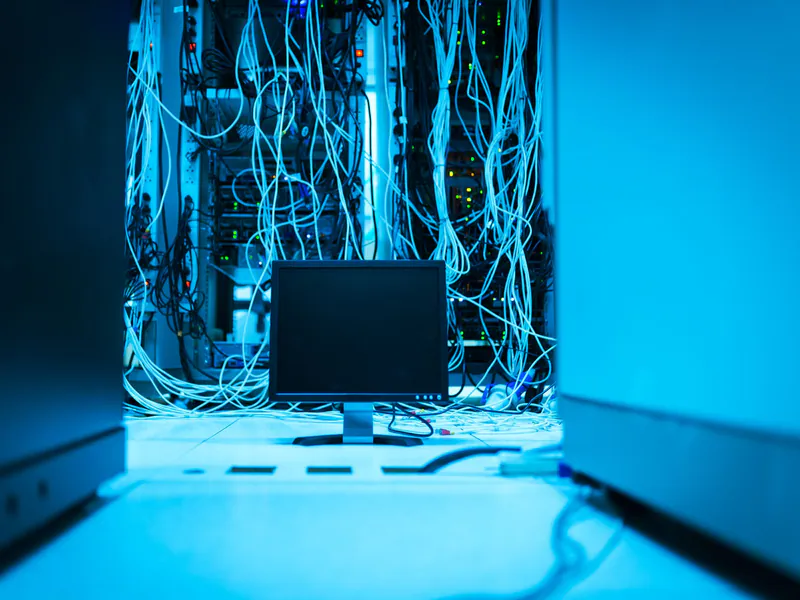

Technician laptop connected to dense server-rack cabling

Size the main run from coincident load

The main busway carries the coincident load of connected tap-offs, not the sum of every nameplate without context. Build a load schedule that shows:

present and future rack count;
IT design load and expected utilisation;
A/B or other redundancy scheme;
load allocated to each path during normal and failure operation;
diversity assumptions and growth reserve;
cooling and auxiliary loads if they share distribution;
fault level and protective-device coordination;
voltage drop and allowable conductor temperature.

An 800 A or 1600 A headline cannot be judged without the number of racks, redundancy state and usable continuous rating. Document normal and contingency cases separately so that reserve capacity is not counted twice.

Busway and cable have different lifecycle strengths

Busway can simplify modular expansion, tap-off relocation and overhead distribution. Cable can remain appropriate for fixed lower-density routes, short connections and designs where the required busway product or support system is not available.

There is no universal 30 kW economic crossover. Compare:

Cost and risk	Busway	Cable
Initial material and engineering	Product and support system	Cable, tray, terminations and installation design
Installation	Modular lengths and joints	Pulling, routing and many field terminations
Change	Tap-off and layout flexibility, within product rules	Re-pulling or adding circuits may be required
Space and airflow	Compact overhead route can help	Cable bundles and bend radius consume route space
Failure and maintenance	Joint and tap-off inspection; product-specific parts	Termination and cable inspection; more field connections

Use local labour, route length, rack churn, planned expansion and outage cost. Do not publish a fixed 40–60% installation saving without a project estimate and baseline.

800 VDC is current focus; 1500 VDC is a roadmap boundary

ASHRAE’s AI Data Center Energy Performance Framework says current designs focus on 800 VDC and future designs will scale toward the 1500 VDC low-voltage limit. It describes a future arrangement using two sources limited to 750 VDC in series.

The Open Compute Project’s power-distribution work similarly targets LVDC architecture at or below 1500 VDC. Its March 2026 white paper discusses current and emerging code and product-standard gaps. This is evidence of an industry transition, not proof that any requested 1500 VDC, 3000 A busway is commercially qualified for a project.

For a 1500 VDC RFQ, require:

rated operational and insulation voltage;
polarity and earthing architecture;
DC fault interruption and isolation strategy;
touch-safe tap-off and maintenance procedure;
creepage, clearance and environmental assumptions;
temperature-rise and short-circuit evidence at DC;
connector make/break limitations;
compatibility with source, rack power shelf and energy storage;
applicable product and installation code path for the site.

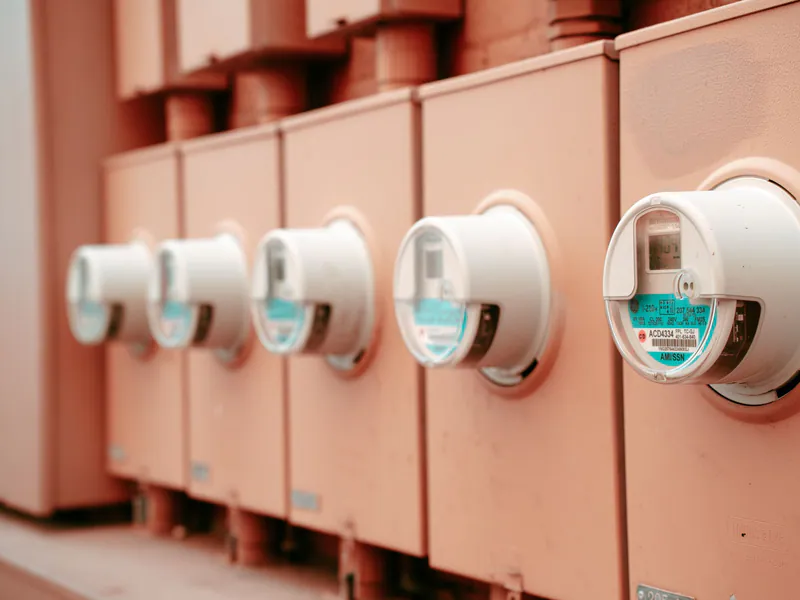

Power meters mounted on an electrical distribution panel

Choose busway construction from the operating model

Track busway supports flexible tap-off placement and is common above rows of IT equipment. Feeder or sandwich busway can carry high current efficiently between major distribution points. The decision depends on tap-off density, environmental protection, available support structure, fault duty, maintenance access and reconfiguration.

Do not infer a universal rating from construction name. Vertiv’s current PowerBar Track product information describes a 160–2500 A modular track family, while its double-stack announcement states configurations up to 2000 A under UL 857 and 2500 A under IEC 61439-6. Those published ratings apply to that product family and configuration, not every busway.

Specify the standards and evidence together

IEC 61439-6:2012 applies to low-voltage busbar trunking systems up to 1000 V AC or 1500 V DC and is used with the applicable Part 1 edition. UL 857 is a central North American product standard for busways. Facility and installation requirements can additionally involve local electrical codes, fire rules, structural/seismic criteria and data-center design standards.

An RFQ should request more than a certificate logo:

exact standard, edition and certification body;
product family and rating covered by the report;
rated current and usable continuous loading conditions;
short-circuit withstand and protective-device assumptions;
temperature-rise test configuration;
IP or enclosure rating;
conductor material and joint design;
tap-off rating, spacing and interlock behaviour;
seismic and support-system evidence where required;
installation, torque, inspection and maintenance instructions.

TIA-942 or another facility standard does not replace busway product certification. Keep facility topology, electrical installation and busway product requirements in separate compliance rows.

Compare suppliers on project fit, not a generic ranking

Major vendors offer different track, feeder, sandwich, monitoring and tap-off ecosystems. Compare the exact proposed product on:

qualified voltage and current configuration;
AC or DC evidence for the proposed architecture;
fault and protection coordination;
tap-off range and future availability;
monitoring and protocol ownership;
footprint, bend and support limits;
installation network and commissioning responsibility;
spare parts, expansion compatibility and product lifecycle;
warranty and local response;
total installed cost and change scenario.

Avoid unsourced statements that one vendor is the North American benchmark or that all suppliers require the same ±0.2 mm conductor tolerance. Ask each vendor for its controlled manufacturing drawings and supplier requirements instead.

Connect busway procurement to fabrication capability carefully

DH CNC does not sell a complete data-center busway system. Its equipment is used upstream to punch, shear or bend rigid conductors when those parts fit the machine envelope. The hyperscale data-center busbar manufacturing article covers that fabrication layer, while the substation and power-distribution solution covers adjacent applications.

A conductor fabrication machine cannot create IEC 61439-6 or UL 857 certification for the final busway. The busway manufacturer owns the product design, verification, process controls and final assembly tests.

Freeze the one-line before the vendor shortlist

The best procurement sequence is:

approve the power architecture and redundancy cases;
calculate rack and coincident main-run loads;
select AC or DC voltage and protection concept;
identify product, installation and facility standards;
define routes, supports, tap-off density and future changes;
issue one testable RFQ to qualified product suppliers;
review certificates and reports against the proposed configuration;
coordinate installation, commissioning and maintenance ownership.

That sequence keeps the 1500 VDC roadmap visible without presenting it as a mature one-size-fits-all product market.

Use the data center switchgear busbar capacity and procurement guide to translate the site load model into a controlled fabrication package. For the adjacent roadmap discussion, the 800 VDC architecture guide distinguishes announced direction from project-ready specifications.
