What is the importance of IEC 61439 in busbar system manufacturing?

IEC 61439 dictates stringent design verification rules for low-voltage switchgear assemblies, specifically regulating temperature rise, short-circuit withstand strength, and dielectric properties. Compliance ensures that busbar systems operate safely under peak electrical and thermal stress without risking arc flashes or insulation failure.

How can CNC busbar machines help achieve IEC 61439 compliance?

CNC busbar machines eliminate manual fabrication errors, ensuring absolute precision in hole punching and bending angles. This guarantees that required clearances and creepage distances are strictly maintained across every fabricated copper link, passing IEC design verification audits on the first attempt.

How to Meet IEC 61439 Standards When Fabricating Switchgear Busbar Systems?

Navigating the stringent requirements of international electrical standards is a permanent challenge for B2B low-voltage switchgear manufacturers. In 2026, the global benchmark for safety and performance remains firmly rooted in the IEC 61439 standard series. Successfully fabricating copper busbars that pass these rigorous verification tests demands more than just quality raw materials; it requires flawless mechanical execution on the factory floor.

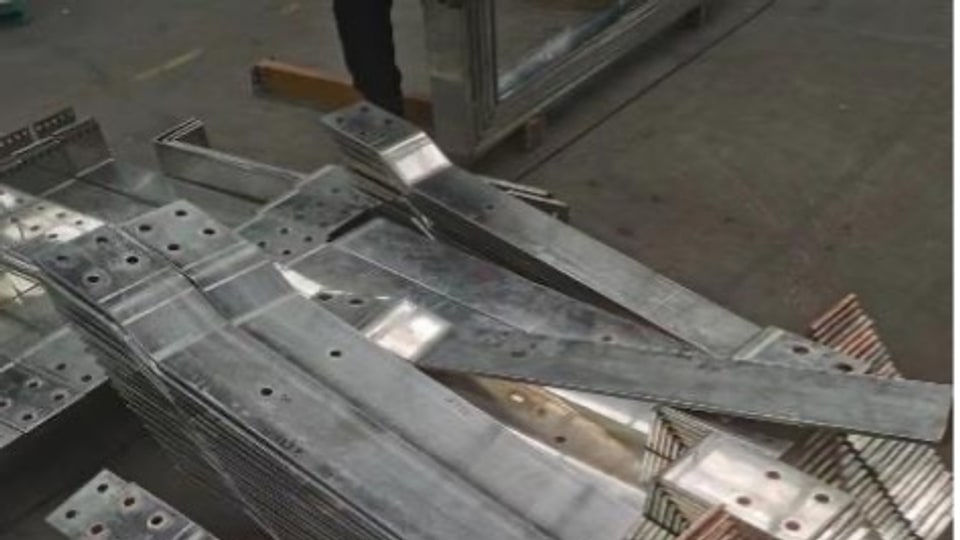

Punched copper busbar hole array prepared for IEC 61439 switchgear spacing checks

Why Are Precision Manufacturing Tolerances Crucial for IEC 61439 Compliance?

Maintaining absolute precision in your busbar system and iec 61439 standards alignment is the sole mechanism to guarantee mandatory electrical clearances and creepage distances within a switchgear assembly. Because IEC 61439 strictly penalizes any deviation that could compromise dielectric strength, switchgear compliance hinges upon the geometric accuracy of every bent and punched copper component. If a busbar is bent manually and deviates by even a single millimeter, it can narrow the air gap between live phases or to ground, violating the required busbar clearances and triggering an immediate audit failure. Employing automated CNC processing technology eradicates this human error, ensuring that your iec 61439 compliance documentation precisely matches the physical reality of the assembled copper network, thereby mitigating the risk of catastrophic arc flashes in the field.

What Are the Key IEC 61439 Metrics Impacted by Busbar Fabrication?

When evaluating the impact of mechanical fabrication on switchgear performance, engineering teams must focus on three distinct technical pillars outlined in the standard.

IEC 61439 Requirement	Definition & Objective	How CNC Fabrication Secures Compliance
Clearance Distances	The shortest distance in air between two conductive parts (Phase-to-Phase or Phase-to-Ground).	Precision servo-bending prevents springback variation, ensuring copper bars never encroach on designated safety gaps.
Creepage Distances	The shortest distance along the surface of a solid insulating material between two conductive parts.	Burr-free punching and shearing prevent jagged copper edges that could damage insulators and reduce creepage tracking paths.
Temperature Rise Limits	Ensures components do not exceed safe operating temperatures (e.g., 105°C for bare copper joints).	Perfectly flat contact surfaces at bolted joints minimize electrical resistance, drastically lowering thermal dissipation.

[!IMPORTANT] If you are designing for high short-circuit withstand strengths ($I_{cw}$), any microscopic unevenness at a busbar joint can cause massive electromagnetic repulsion forces to shift the bars during a fault. Review our comprehensive guide on IEC 61439 busbar clearances to understand exactly how to layout your cabinet infrastructure.

How Does Copper Joint Quality Affect Temperature Rise Verification?

The most frequent cause of failure during IEC 61439 design verification is failing the temperature rise test. The standard dictates that bare copper terminals must not exceed a maximum temperature of 105°C. The surface finish of your punched and bent busbar system and iec 61439 standards compliance are deeply interconnected. When two copper bars are bolted together, electricity must pass through the microscopic contact points between them. If the busbar was bent using an outdated hydraulic press without springback compensation, the joint will have a slight, invisible bow.

This warping creates an air gap. Electricity is forced through a smaller surface area, drastically increasing contact resistance and localized heating. A high-end CNC machine ensures that the flattened areas of the busbar clearances remain entirely flush. This maximizes the effective contact area, significantly reducing the operating temperature and allowing the switchgear to safely pass full-load thermal testing.

How to Guarantee Long-Term Audit Success?

Achieving switchgear compliance is not a one-time event; it is a continuous manufacturing discipline. Leading global certification bodies such as TÜV SÜD and UL Solutions rigorously inspect supply chain quality controls during their factory audits. Furthermore, organizations like the International Electrotechnical Commission (IEC) and the NEMA (National Electrical Manufacturers Association) frequently emphasize that verifiable, repeatable machining processes are the bedrock of electrical safety.

By standardizing your production line with equipment like our integrated CNC punching and shearing workstations, your facility shifts from reactive quality control to proactive quality assurance. Engineering managers can confidently present their manufacturing tolerances to auditors, knowing that every piece of copper leaving the factory perfectly mirrors the approved CAD model, cementing your brand’s authority as a tier-one iec 61439 compliance switchgear provider.
