Direct B2B Source for CNC Busbar Machines in Mexico & Latin America
Eliminate import headaches. Get factory-direct CNC workstations engineered, pre-wired, and fully calibrated for 220V/440V 60Hz power supplies. Delivered direct to your shop floor in Mexico, Colombia, Chile, and Peru with all taxes and customs fully handled.
Sea + Inland logistics
We handle import custom filings, pay local taxes (IVA/tariffs), and manage flatbed transit straight to your plant.
Pre-wound 60Hz motors
Custom three-phase 60Hz wound copper motors prevent pump overheating, cavities, and wear caused by standard 50Hz motors.
Plug-&-Play Commissioning
Workstations arrive pre-calibrated, filled with hydraulic oil, and tested. No physical installer overhead needed.
15+ YEARS
Busbar Engineering Heritage
GLOBAL EXPORT
Seaworthy Shipping Standard
300+ LATAM
Active Workstation Installations
100% PRE-TESTED
Voltage & Pressure Certified
Overcoming the Largest Risks of Importing Industrial Machinery
We design our supply chain, logistics, and engineering to address the exact bottlenecks that stall panel builders when buying heavy machinery.
CNC Workstation Base
Every workstation is pre-assembled, wired with high-precision copper motors, and thoroughly tested under raw load at our facility before packing.
1. Flexible Shipping (FOB, CIF, DAP)
Ocean transit, customs agency, and domestic logistics are highly fragmented. We offer total Incoterms flexibility. We manage customs files, ocean shipping, and local transport, adapting logistics directly to your target plant's guidelines.
2. Pre-wound 60Hz Electricals
Cheap machines use 50Hz motors adapted with VFDs. Running a standard 50Hz motor on a 60Hz grid runs the motor too hot and overpressurizes hydraulic cylinders. We source copper-wound 60Hz coils specific to the three-phase voltages used in Mexican and South American industries.
3. Modular, Plug-and-Play Design
Workstations like the DH303-8P and DHAC-BB-H arrive fully calibrated, filled with premium hydraulic oil, and tested on copper samples. You do not need to wait for a physical installation engineer. Open the crate, hook up the grid lines, and start fabricating.
4. Rapid Global Parts & Service
We use globally recognized components including Schneider contactors, Siemens electricals, and standard German-engineered hydraulic seals. If custom elements fail, they are dispatched via DHL Express, reaching LATAM in 3-5 business days.
5. Material Verification Tests

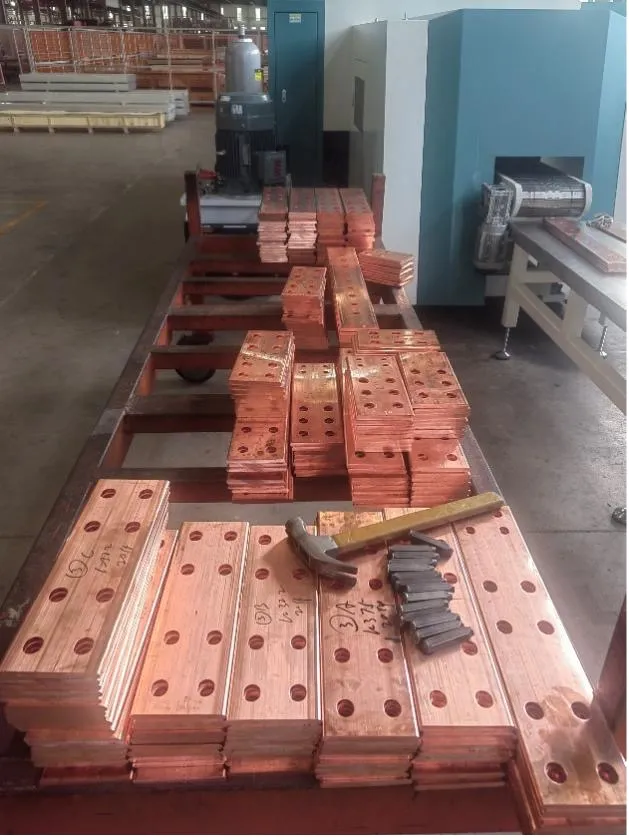

Latin American manufacturers utilize diverse busbar materials (T2 Copper, Aluminum Alloys, Tin-plated busbars). Send us a sample of your exact busbar layout, and we will perform test runs at our plant, recording high-definition video of the shearing and bending performance.
6. Engineering Level Support
You will not be passed to front-line customer service reps. Technical queries are resolved directly by mechanical and control system engineers who originally designed the machines, supported by full English documentation and step-by-step videos.
DH CNC Busbar Workstations
Explore the engineering and processing limits of our flagship automated punch centers, high-accuracy servo benders, and manual multi-stations.
CE CERTIFIED · 60Hz READY

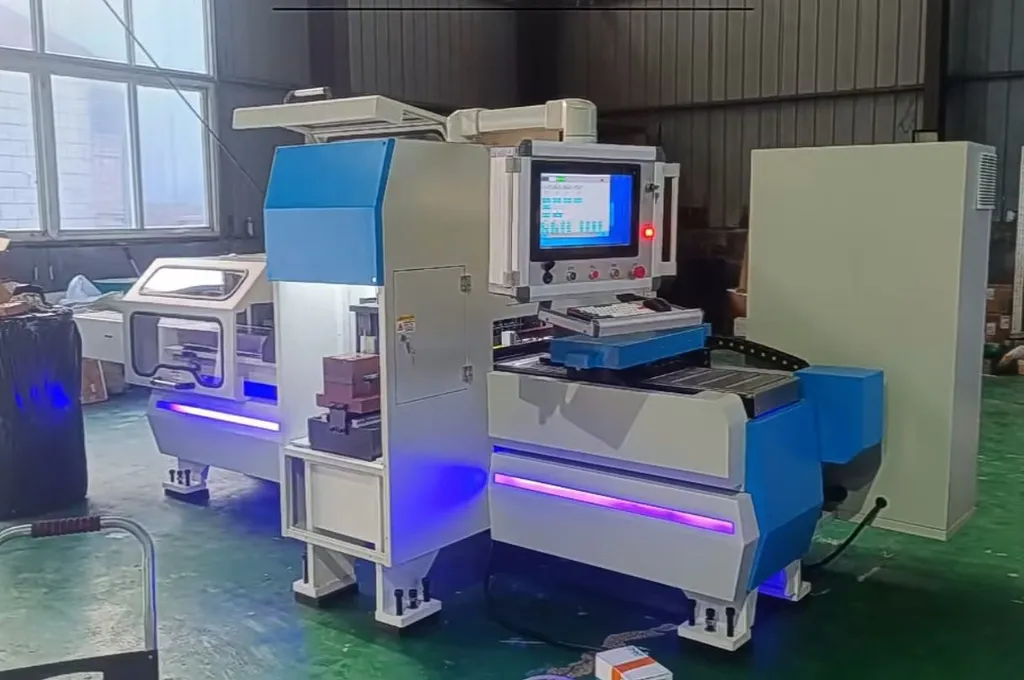

Flagship CNC Busbar Punching & Shearing Center
High-volume, fully automated switchgear & control panel manufacturing plants.
Control System & Interface
3D CAD/CAM nesting software (imports DXF directly, saves 10-15% copper)
Capabilities
- Monoblock pre-tempered stress-relieved steel frame for decade-long structural alignment.
- High-speed servo-driven mechanical feeders with dual hydraulic clamps.
- Automatic tooling-wear alerts and active sheet alignment monitoring.
- Custom pre-configured 60Hz hydraulic station with closed-loop fluid cooling.
Why 60Hz Dedicated Motors Are Mandatory for Mexico & South America
Many Asian machinery exporters sell standardized 380V/50Hz machines to the Americas, claiming that adding a standard Variable Frequency Drive (VFD) is sufficient to handle the voltage difference. This is a severe engineering risk for high-force hydraulic systems.
When running a motor wound for 50Hz on a 60Hz power supply without dedicated coil winding adjustments, the motor runs 20% faster. In hydraulic machinery, this translates to excess pump speed, which causes rapid overheating of the hydraulic fluid, seal degradation, oil leakage, and cavitation inside the piston chambers.
Our Engineering Solution: Every workstation built for Mexico (220V/440V 60Hz), Colombia (220V/60Hz), or Brazil (380V/60Hz) is pre-configured with a custom copper-wound motor and thermal-overload protection calibrated precisely to your facility's exact electrical blueprint.
Additionally, all internal transformers, contactors, and relays are selected to handle standard voltage fluctuations, keeping the machine's critical CNC panels entirely safe from drop-outs and power surges.

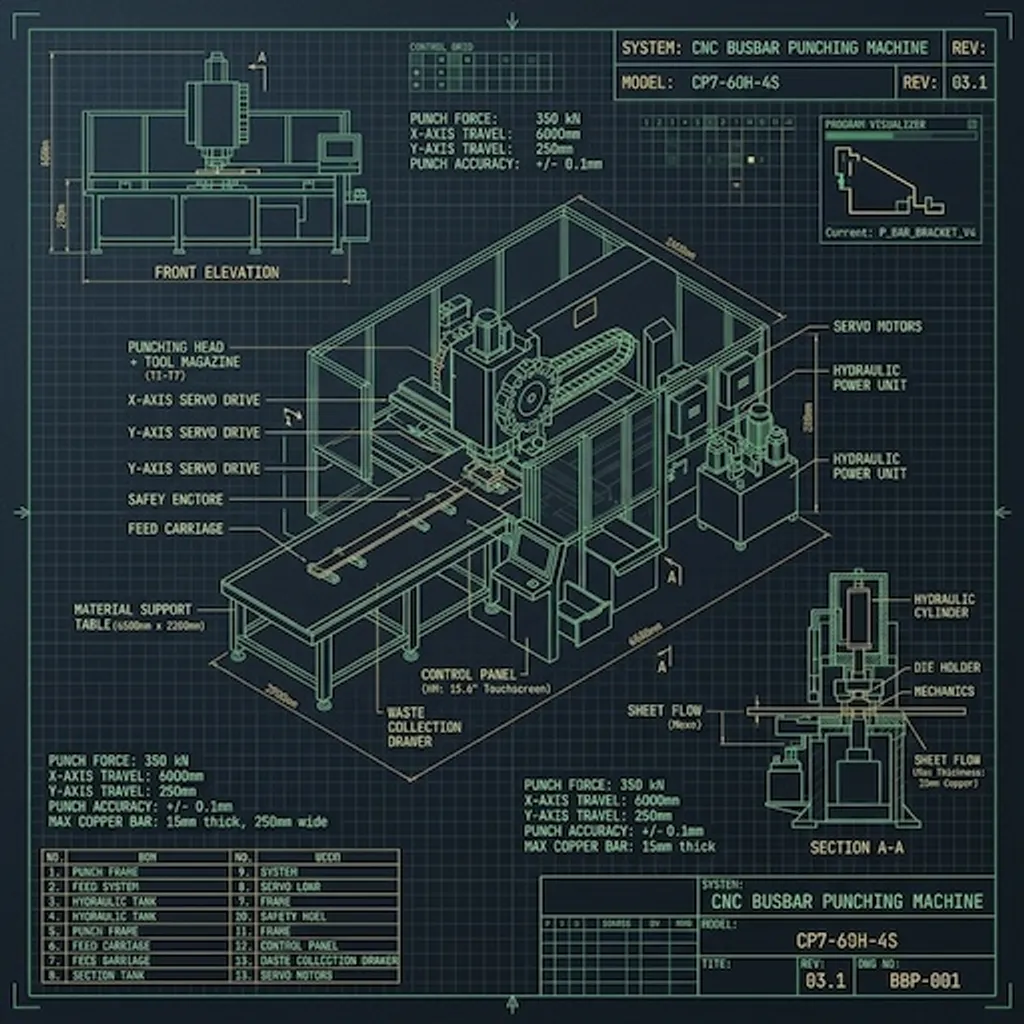

Technical Blueprint Reference
Standard punching clearance and multi-angle bending offset calculations CAD schema. Feeder jaws grip material with dynamic sheet offset protection.
Grid Specifications We Pre-Wired
220V Three-Phase or 440V Three-Phase at 60Hz. Pre-calibrated hydraulic block.
220V Three-Phase or 380V Three-Phase at 60Hz. Custom oil coolers integrated.
380V Three-Phase at 60Hz (Brazil) / 50Hz (Chile). Fully isolated control panels.
Tested under raw load before packing in jinan factory
Side-by-Side Technical Specifications
Compare motor power, punching capacity, punching stations, and accuracy dimensions across our three core workstations.
| Mechanical Metric | DH303-8P (Compact 3-in-1) | DHAC-BB-H (Servo Bender) | DHCNC-BP-60 (Flagship Center) |
|---|---|---|---|
| Main Processing Function | Punching, Shearing, Bending | Precision Servo Bending Only | Auto Punching, Shearing, Embossing |
| Max Copper Size (W × T) | 150 mm × 12 mm | 200 mm × 16 mm | 250 mm × 16 mm |
| Punching/Bending Force | 300 kN | 300 kN | 300 kN |
| Number of Stations | 3 Stations (Manual turret setup) | Bending Die Set (Interchangeable) | 7 Punches + 1 Shear + 1 Emboss turret |
| Positioning System | Manual scale and laser guide | Backgauge servo & glass scale | Closed-loop dual servo feeders |
| Working Repeatability | ±0.3 mm | ±0.2° Angle Precision | ±0.1 mm Positioning |
| Hydraulic Power Units | 3 Independent Pumps (3×31.5 MPa) | 1 High-Response Servo Pump | 1 High-Force Hydraulic Pump |
| Total Motor Power | 3 × 4.0 kW (60Hz wound) | 7.5 kW Servo Hydraulic | 11.0 kW High Efficiency |
| Physical Dimensions | 1850 × 1420 × 1400 mm | 2300 × 1500 × 1600 mm | 4300 × 2200 × 1950 mm |
| Total Machine Weight | 1,500 kg | 2,200 kg | 4,800 kg |
Recent Latin American Deliveries
Track real factory-direct shipments delivered under flexible FOB, CIF, or DAP terms direct to switchgear plants across major regional hubs.
Querétaro, Mexico
Pre-commissioned at factory, packaged inside high-impact non-fumigation wood, customs duties cleared, and delivered direct.
Monterrey, Mexico
Pre-commissioned at factory, packaged inside high-impact non-fumigation wood, customs duties cleared, and delivered direct.
Bogotá, Colombia
Pre-commissioned at factory, packaged inside high-impact non-fumigation wood, customs duties cleared, and delivered direct.
Santiago, Chile
Pre-commissioned at factory, packaged inside high-impact non-fumigation wood, customs duties cleared, and delivered direct.

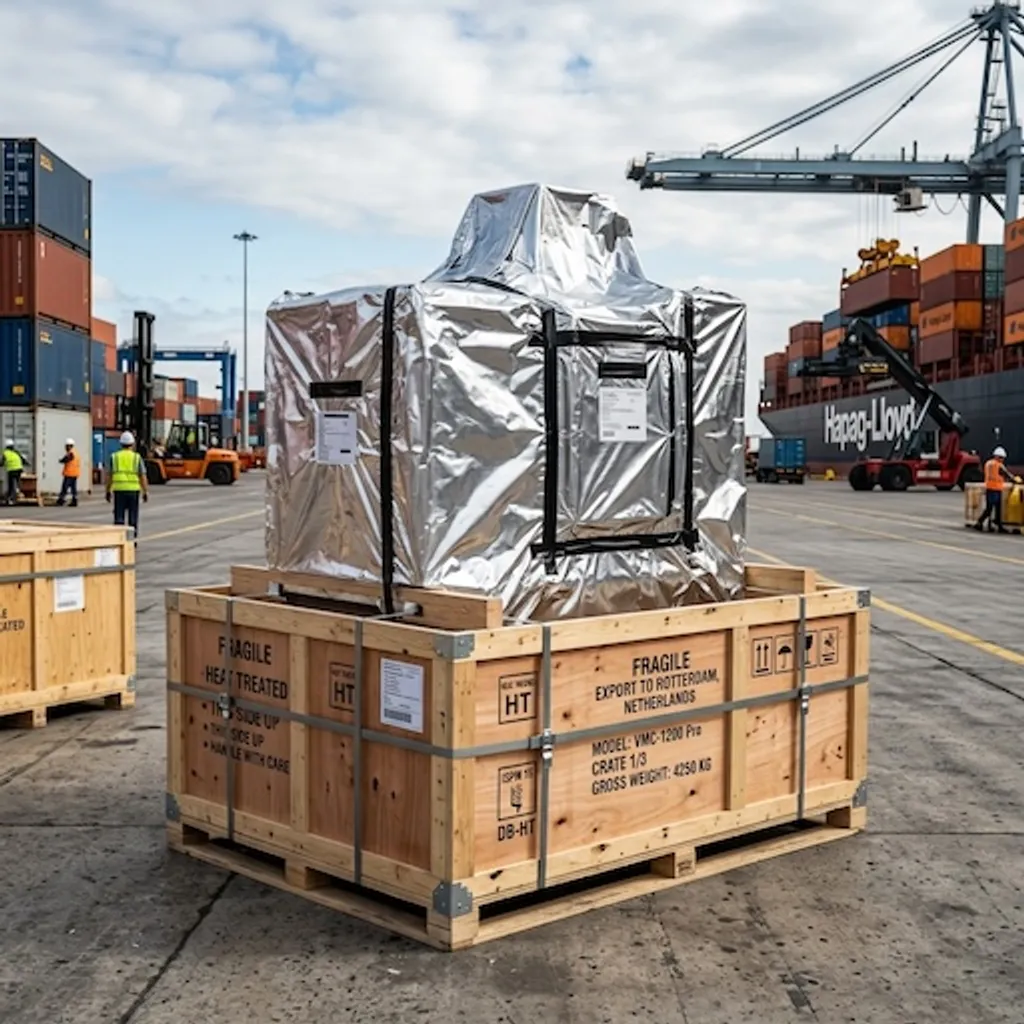

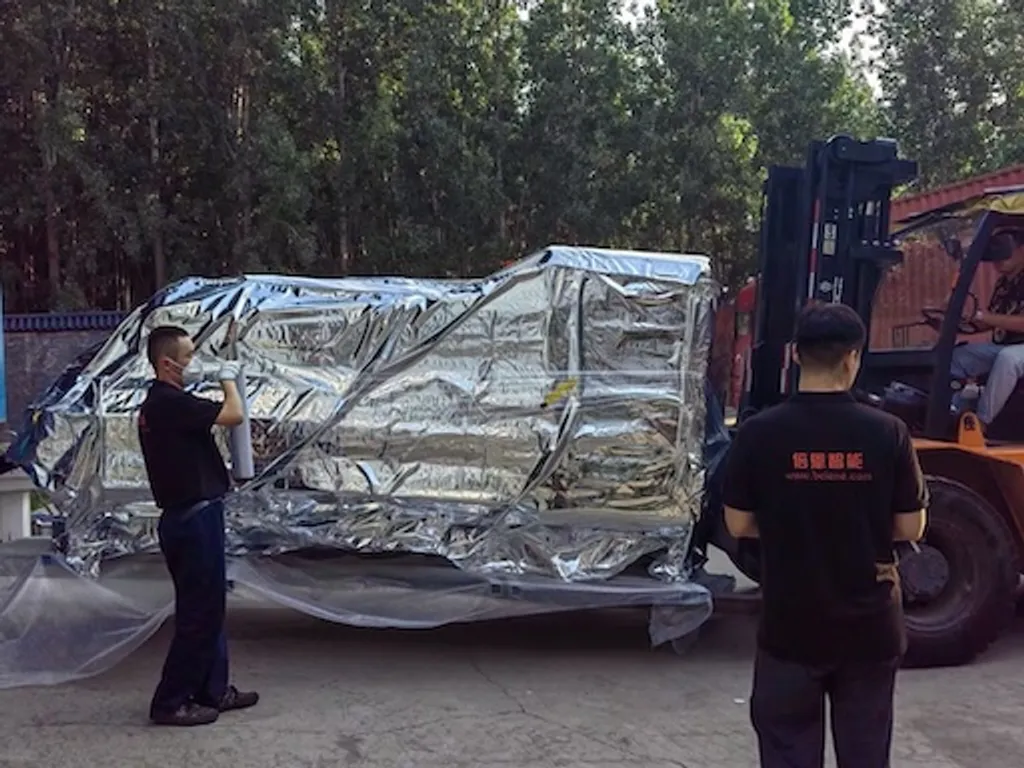

Heavy Vacuum Corrosion Barrier
To prevent saltwater corrosion during ocean transit, we wrap every workstation in thick anti-moisture vacuum barriers and secure them within export-grade non-fumigation solid wood crates.
Answers for Plant Engineers
Find technical answers on electrical calibration, shipping lanes, import logistics, and long-term service guarantees.
Do you configure the electrical motors for 220V/60Hz or 440V/60Hz grids in Mexico and Colombia?
What shipping terms (FOB, CIF, DAP) do you offer for Latin American plants?
How do you handle technical support and spare parts in Latin America?
Does the machine arrive fully assembled or does it require on-site engineering?
Can these machines import DXF blueprints directly from AutoCAD or SolidWorks?
Secure Your Facility Quotation Today
Sourcing direct from Jinan machinery plant allows you to capture wholesale industrial pricing while preserving customized electrical parameters.
ISO 9001:2015 Quality
Manufacturing facility is audited annually, ensuring rigorous part precision controls.
CE Standards Compliant
Integrated safety shielding, immediate E-stop switches, and certified low-noise pumps.
12-Month Guarantee
Full coverage on all cylinder components, hydraulic blocks, and critical CNC electronics.
Pre-Shipment Video Test
Receive live load video test runs of your specific workstation prior to container packing.
Chief Engineer Consultation
Contact: Mr. David Yang
"Send me your copper busbar dimensions (width and thickness range), and I will calculate the exact hydraulic pressure required, recommending the perfect die layout."
Request FOB, CIF, or DAP Shipping & Factory Direct Quotation
Fill in your factory grid specifications and processing targets. Get a tailored FOB, CIF, or DAP shipping estimate to your city.
