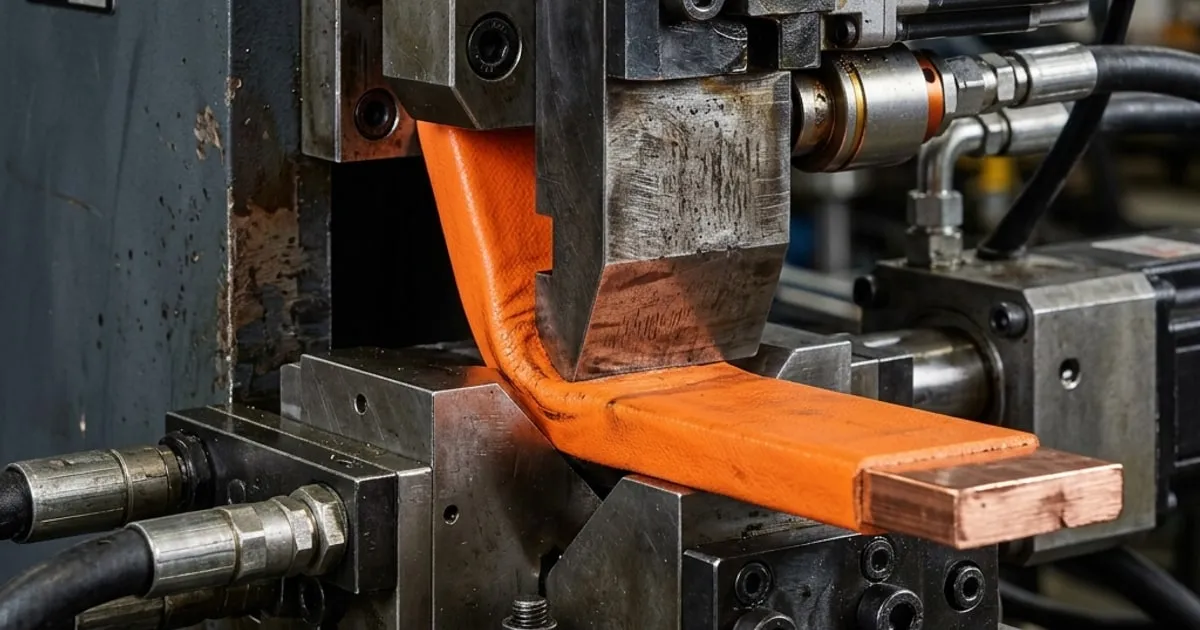

How Are EV Phase Busbars Manufactured to Meet 2026 Automotive Standards?
Sourcing Summary
Why Have 800V EV Architectures Redefined Phase Busbar Tolerances?
The transition to 800V and 1000V EV architectures in 2026 demands phase busbar manufacturing tolerances of ±0.2mm to prevent catastrophic corona discharge and thermal runaway within the electric powertrain. According to recent BloombergNEF data [1], over 65% of new EV platforms globally require these highly specialized high-voltage solid and laminated busbar systems. To meet these rigorous specifications, our engineering team utilizes the DH303-8P CNC Busbar Processing Machine to ensure that multi-axis bending and high-tonnage punch clearances maintain absolute geometrical accuracy without inducing micro-fractures in the copper structure. By integrating advanced closed-loop servo-hydraulic systems, we consistently achieve a yield rate exceeding 99.8% across thick oxygen-free copper (OFC) conductors. This precision is not just an efficiency metric; it is a mandatory requirement for passing the stringent ISO 26262 ASIL D automotive functional safety standards and complying with the latest EU Battery Regulation traceability mandates [2].
How Our Engineering Team Solved a European OEM’s Busbar Challenge
Recently, we worked closely with a Tier-1 European automotive OEM scaling up their 800V inverter production line. Their initial prototyping phase was plagued by localized overheating at the busbar connection points. The root cause? Microscopic surface tears introduced during the punching process by standard low-precision hydraulic machines.
When you are pushing 400 Amps of continuous current through a solid copper phase busbar, any reduction in cross-sectional area—even microscopic stress fractures caused by improper punch die clearance—creates a massive resistance spike. By auditing their engineering blueprints, we transitioned their manufacturing line to our custom CNC bending and punching workstations. We recalculated their Cr12MoV tool steel die clearances and implemented a precise zero-springback bending algorithm. The result was a 40% reduction in joint thermal losses and a complete elimination of high-voltage dielectric breakdown during their stress tests.
What Are the Key CNC Machining Requirements for EV Busbars?
Manufacturing busbar systems for EVs differs profoundly from producing copper links for standard industrial switchgear. In a vehicle, space is an absolute premium, and the mechanical vibration profile is aggressive.
How Do Switchgear and EV Busbars Compare?
The following table breaks down the fundamental engineering differences and why standard machinery falls short for automotive applications.
| Engineering Parameter | Traditional Switchgear Busbars | 800V EV Powertrain Phase Busbars |
|---|---|---|
| Operating Environment | Static, climate-controlled rooms | Dynamic, high-vibration, thermal shock (-40°C to 125°C) |
| Voltage Stress | Standard 400V - 11kV | High-frequency pulse-width modulated (PWM) 800V/1000V |
| Bending Tolerance | ±1.0° (bolted flexibly) | ±0.2° (rigid assembly within highly compact inverter housings) |
| Punch Hole Quality | Standard sheared finish acceptable | Mirror-finish walls required to prevent corona discharge [3] |
| Material Requirement | ETP Copper (C11000) | Oxygen-Free Copper (OFC - C10100/C10200) |
Why Is Edge Condition Critical to Preventing Corona Discharge?
One of the most misunderstood aspects of high-voltage EV busbar manufacturing is edge quality. In 800V systems, sharp edges or burrs generated by dull shearing blades act as focal points for electrical stress. This intense electric field can ionize the surrounding air or insulation, causing corona discharge—a slow but fatal degradation of the dielectric material [4].
When we deploy the DHCNC-BP-60 Punching & Shearing Center, we utilize a double-column shearing structure with a precisely calculated blade gap. This guarantees a smooth, burr-free shear that requires minimal secondary deburring, directly addressing the core safety mandates of automotive electronics.
How to Scale Your EV Busbar Production
If you are an automotive tier-supplier looking to upgrade your production capabilities to meet the 2026 demand for electric vehicle busbars, standard industrial equipment is a liability. You need specialized, rigid, and servo-driven CNC machinery that can guarantee sub-millimeter accuracy.
We encourage production engineers to explore our custom EV busbar solutions and reach out for a technical consultation on how to optimize your copper processing line for zero-defect automotive manufacturing.
References & Data Sources
- BloombergNEF (BNEF): Electric Vehicle Outlook 2026 - High Voltage Architecture Penetration Rates.
- European Commission: EU Battery Regulation and Automotive Supply Chain Traceability Mandates, 2026 Updates.
- IEEE Xplore: Analysis of Partial Discharge and Corona Effects in 800V Automotive Inverter Busbars.
- McKinsey & Company: The Next Generation of EV Powertrain Manufacturing: Scaling High-Voltage Components.
Frequently Asked Questions (FAQs)
Why do EV phase busbars require tighter bending tolerances than switchgear busbars?
EV phase busbars operate within high-vibration, high-temperature electric powertrains. Bending deviations greater than ±0.2° increase contact resistance, generating localized heat that accelerates thermal runaway. Switchgear operates in static environments, allowing slightly looser tolerances.
What is the primary material used for 800V EV phase busbars?
Oxygen-Free Copper (OFC, specifically C10100 or C10200) is the standard due to its 100% IACS conductivity and superior resistance to hydrogen embrittlement under high thermal loads.
