How does 3D nesting software reduce copper waste in busbar punching?

3D nesting software mathematically calculates the optimal layout of multiple punched holes and cut lengths along a single raw copper bar. By automatically sequencing the operations to leave minimum spacing between parts, a CNC busbar punching machine can reduce expensive copper scrap rates from a typical 8% down to less than 1%.

Why is automated CNC punching superior to manual hole drilling?

Manual drilling is painfully slow, generates hazardous metal shavings, and leaves burrs that degrade electrical contact. An automated CNC busbar punching machine utilizes high-tonnage hydraulic shearing to punch perfectly clean, burr-free holes in seconds, entirely removing the assembly bottleneck and ensuring strict IEC compliance.

How Does a CNC Busbar Punching Machine Prevent Copper Waste and Bottlenecks?

In the high-volume production of electrical switchgear, the punching station is historically the most notorious bottleneck. Every copper bar requires multiple connection points, slots, and mounting holes. In 2026, with copper prices hitting historic highs on the London Metal Exchange (LME), relying on manual drilling or outdated stamping presses is a direct threat to a manufacturer’s profitability.

Why Is Intelligent Copper Nesting Essential for Cost Control?

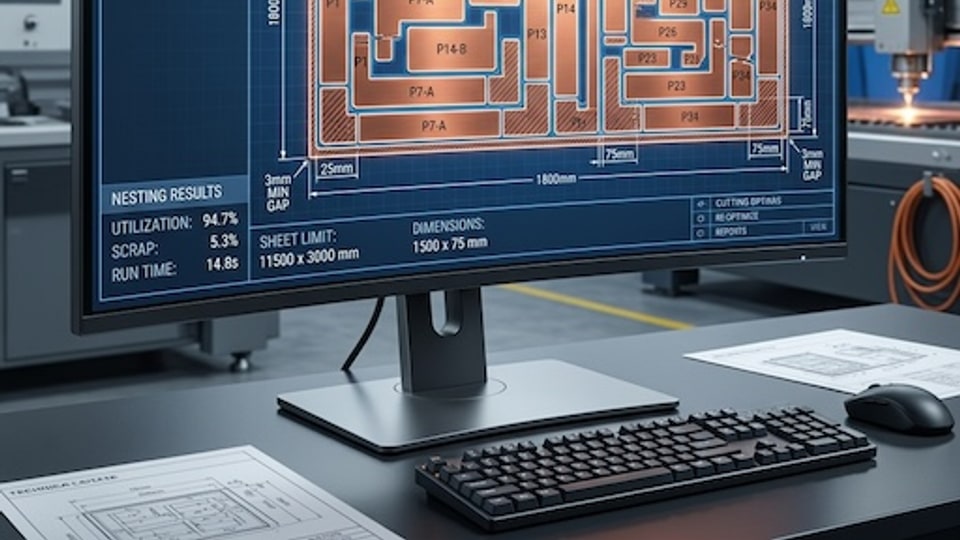

A cnc busbar punching machine is the ultimate defense against raw material waste because it utilizes advanced algorithmic software to execute copper punching nesting. Instead of operators manually measuring and cutting individual segments, the software analyzes the entire production run and mathematically arranges the punched holes and shear cuts along a standard 6-meter copper bar to minimize offcuts. This precise switchgear tooling approach ensures that every millimeter of expensive T2 copper is utilized effectively. By upgrading to an automated busbar processing workstation, switchgear facilities can instantly drop their scrap rates from an industry average of 8% to under 1%, directly translating into massive quarterly savings on raw material acquisition.

The Mechanics of Burr-Free Punching

When electricity passes through a bolted busbar joint, the surface area must be perfectly flush.

Punching Defect	Root Cause in Manual/Outdated Tooling	CNC Punching Resolution
Edge Burrs / Shavings	Dull drill bits or incorrect die clearances tear the metal rather than shearing it cleanly.	CNC machines use matched, hardened steel punch/die sets with exact clearances, slicing through copper instantly.
Hole Misalignment	Operator error in marking centers or clamping the material crookedly.	Servo-driven X/Y axis clamps position the copper with ±0.1mm accuracy before the punch drops.
Surface Deformation	Excessive press tonnage or lack of stripper plates warps the surrounding copper.	Integrated urethane stripper plates hold the material perfectly flat as the punch retracts.

[!IMPORTANT] If your assemblers are using hand files or angle grinders to deburr copper holes before bolting them together, your production line is bleeding labor hours. Check out our integrated CNC punching and shearing workstation to eliminate manual deburring entirely.

Accelerating the Switchgear Production Line

Beyond material savings, the speed of a cnc busbar punching machine fundamentally alters factory throughput. A multi-tool turret or a linear tool changer allows the machine to switch between round holes, oval slots, and shearing blades in fractions of a second without human intervention. This means complex profiles required for heavy-duty circuit breakers can be processed in minutes rather than hours.

According to research from the Copper Development Association (CDA), the surface finish of a punched hole directly dictates the longevity of the joint under high thermal loads. Furthermore, international engineering bodies like the International Academy for Production Engineering (CIRP) and the American Society of Mechanical Engineers (ASME) continually validate that CNC shearing provides superior metallurgical edge integrity compared to traditional abrasive or thermal cutting methods.

By integrating intelligent nesting and automated tool changes, switchgear manufacturers can clear their factory bottlenecks, ensuring that the assembly teams never have to wait for fabricated copper parts, and ultimately delivering completed cabinets to clients faster than the competition.
